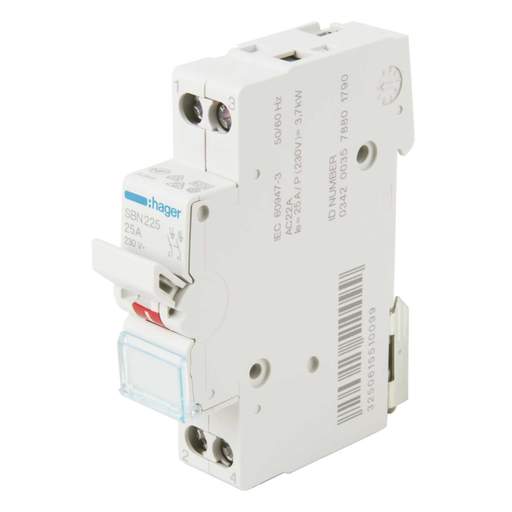

Hager 25A DP Switch Disconnector
Part Code: SBN225
Stock Code: 1477-3894
Hager 25A DP Switch Disconnector
Part Code: SBN225
Stock Code: 1477-3894
Features
- All switches have a green / red indication on the handle giving positive contact indication
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 25A
- Depth
- 68mm
- Dimensions
- (H)83 mm x (W)17.5 mm x (D)68 mm
- Guarantee
- 2 Years
- Height
- 83mm
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- Modular Devices
- Standards
- BS EN 60947
- Type
- Switch Disconnector
- Unspsc V18
- 39122233
- Unspsc V24
- 39122233
- Voltage Rating
- 230V
- Weight
- 0.07500kg
- Width
- 17.5mm
