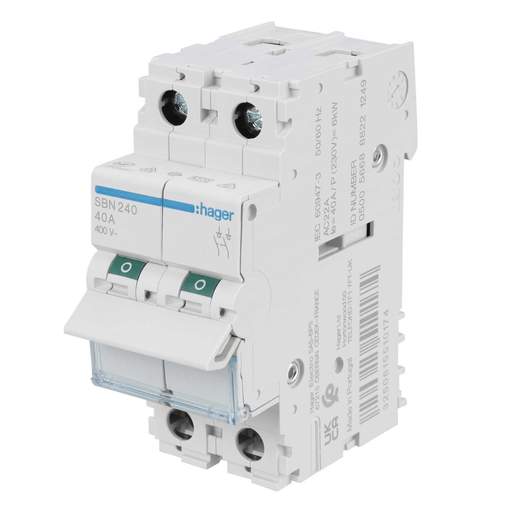

Hager 40A DP Switch Disconnector

Part Code: SBN240

Stock Code: 1477-3906

Hager 40A DP Switch Disconnector

Part Code: SBN240

Stock Code: 1477-3906

Delivery

35 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • For use as a Switch Disconnector in all types of circuits
  • Cable Clamps
  • Connection Capacity: 25mm Rigid Conductor, 16mm Flexible Conductor
  • All switches have a green/red indication on the handle giving positive contact indication

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Current Rating
40A
Depth
68mm
Dimensions
(H)83 mm x (W)35 mm x (D)68 mm
Guarantee
2 Years
Height
83mm
Mounting
DIN Rail
Number of Modules
2
Number of Poles
2 Pole
Packaging Types
Each
Product Range
Modular Devices
Standards
BS EN 60947
Type
Switch Disconnector
Unspsc V18
39122233
Unspsc V24
39122233
Voltage Rating
230V
Weight
0.14917kg
Width
35mm
