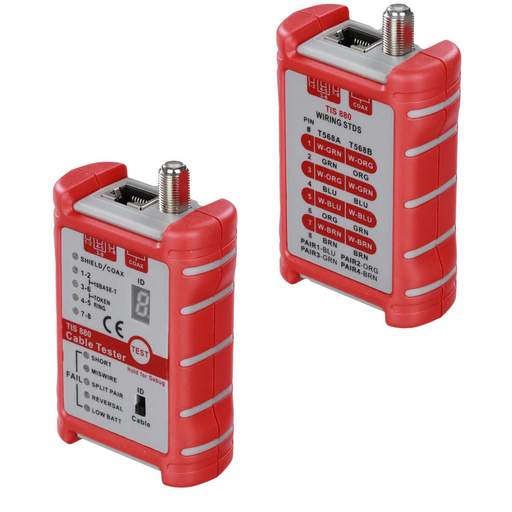

TIS 880 Network Cable Tester
Part Code: TIS 880
Stock Code: 1578-8371
TIS 880 Network Cable Tester
Part Code: TIS 880
Stock Code: 1578-8371
Features
- Two piece unit that will test UTP , STP and coaxial cable
- Hand held size
- Tests the ID number of the ID test terminal connected to the remote end of the cable under test
- Via the de-bug facility, it is also able to identify which cable pair have a specific wiring fault
- Basic functions cable length minimum 1m maximum 300m
- Checks continuity and configuration of wiring with RJ45 plugs
- Tests for open circuits, shorts, miswires, reversal and split pairs shield detection
- Tests a cables shield integrity
- Main and remote unit allow one person testing
- Low battery indication
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Test Instrument Solutions
- Battery Level Indicator
- Yes
- Battery Size
- AAA
- Battery Type
- Alkaline
- Depth
- 58mm
- Dimensions
- (H)98 mm x (W)64 mm x (D)58 mm
- Guarantee
- 2 Years
- Height
- 98mm
- Packaging Types
- Each
- Previously Known As
- TIS880
- Supplied With
- 2 x AAA Batteries
- Unspsc V18
- 41113740
- Unspsc V24
- 41113740
- Weight
- 0.16500kg
- Width
- 64mm
