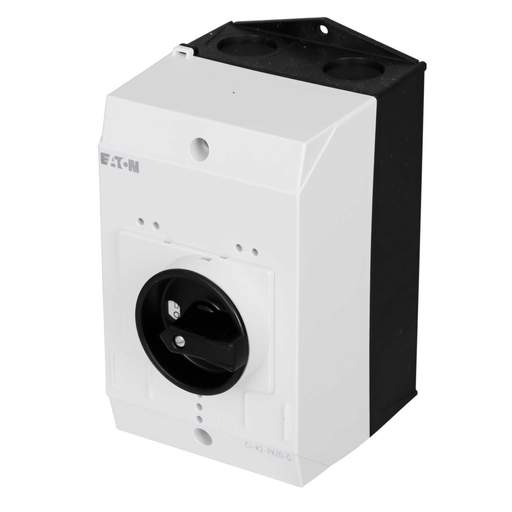

Moeller CI-K2-PKZ0-G Insulated Surface Mounting Enclosure with Rotary Knob
Part Code: 219654
Stock Code: 1590-8950
Moeller CI-K2-PKZ0-G Insulated Surface Mounting Enclosure with Rotary Knob
Part Code: 219654
Stock Code: 1590-8950
Features
- PZK motor protective circuit breakers range
- Insulated surface mount enclosure
- Neutral and earth terminals included
- Push-through cable entry diaphragm top, bottom and in the backplate
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Cable Entry
- M25 Knockout, Top and Bottom
- Colour
- Grey/Black
- Depth
- 130mm
- Dimensions
- (H)181 mm x (W)100 mm x (D)130 mm
- Guarantee
- 1 Year
- Height
- 181mm
- IP Rating
- IP65
- Material
- Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Surface
- Packaging Types
- Each
- Suitable For
- +NHI or AGM, +U or A, +NHI-E, +L-PKZ0
- Unspsc V18
- 39121303
- Unspsc V24
- 39121303
- Weight
- 2.60000kg
- Width
- 100mm
