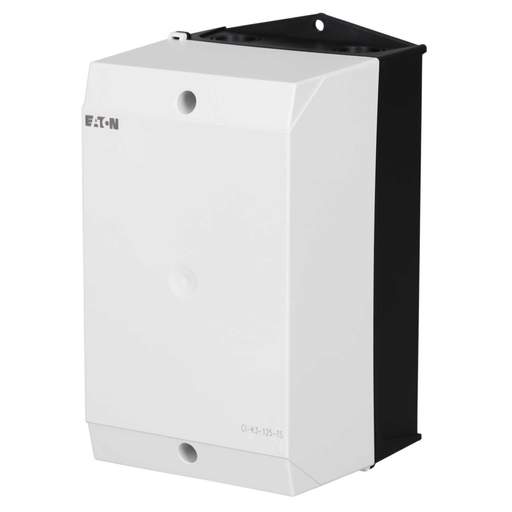

Moeller CI-K3-125-TS 200mm x 120mm x 125mm GRP Enclosure IP65
Part Code: 206884
Stock Code: 1590-8992
Moeller CI-K3-125-TS 200mm x 120mm x 125mm GRP Enclosure IP65
Part Code: 206884
Stock Code: 1590-8992
Features
- Basic enclosure with mounting plate
- Metric cable entry knockouts top, bottom and in the back plate
- Push through cable entry diaphragm
- Control Cable Entry
- With mounting rail to IEC/EN 60715
- Resistant to corrosion
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Cable Entry
- 4 X M25/20 and 1 x 20 Knockout
- Chemical Resistant
- Yes
- Colour
- Grey/Black
- Depth
- 125mm
- Dimensions
- (H)200 mm x (W)120 mm x (D)125 mm
- Guarantee
- 1 Year
- Height
- 200mm
- IP Rating
- IP65
- Knockouts
- 4 x M20 / M25 and 1 x M20
- Material
- Glass-fibre Reinforced Polycarbonate
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Surface
- Packaging Types
- Each
- Product Range
- CI-K Small Enclosures
- Standards
- IEC EN 60529, DIN 43660, EN 50262
- Unspsc V18
- 39121303
- Unspsc V24
- 39121303
- Weight
- 2.60000kg
- Width
- 120mm
