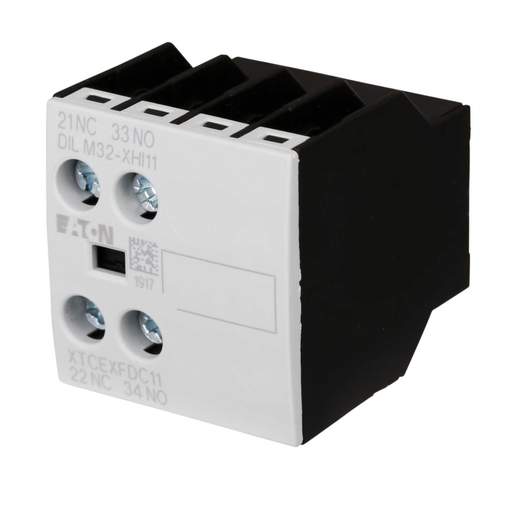

Moeller DILM32-XHI11 Auxiliary Contact Block 1 NO + 1 NC Contacts
Part Code: 277376
Stock Code: 1591-0147
Moeller DILM32-XHI11 Auxiliary Contact Block 1 NO + 1 NC Contacts
Part Code: 277376
Stock Code: 1591-0147
Features
- Interlocked opposing contacts for standard applications
- Operating temperature -25 - 60°C
- Screw terminals
- EN 60947-4-1
- Suitable for DILM9 - DILM32 Contactors
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Black/Grey
- Compliance
- CE
- Contact Configuration
- 1 NO + 1 NC
- Current Rating
- 16A
- Depth
- 42mm
- Dimensions
- (H)68 mm x (W)36 mm x (D)42 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 68mm
- Mounting
- Front
- Number of Poles
- 2 Pole
- Operating Temperature Range
- -25 - 60°C
- Packaging Types
- Each
- Product Range
- Auxiliary Contact Module
- Standards
- IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE Marking
- Suitable For
- DILM(C)9-10, DILM(C)12-10, DILM(C)15-10, DILM(C)17-10, DILM(C)25-10, DILM(C)32-10, DILM38-10, DILMP20, DILMP32-10
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 0.00900kg
- Width
- 36mm
