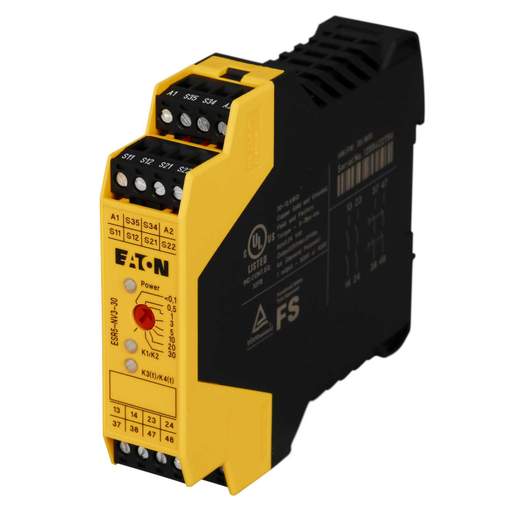

Moeller ESR5-NV3-30 Safety Relay 24V DC
Part Code: 118705
Stock Code: 1591-1890
Moeller ESR5-NV3-30 Safety Relay 24V DC
Part Code: 118705
Stock Code: 1591-1890
Features
- Basic function - emergency stop, emergency switching off, protective door, light curtain, time function and feedback circuit
- Automatic or manual start
- Single or dual channel
- 4 enabling paths 2 delayed
- Suitable for monitoring of position switches and emergency stop circuits
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Yellow/Black
- Connection Type
- M3 screw terminals
- Depth
- 114.5mm
- Dimensions
- (H)99 mm x (W)22.5 mm x (D)114.5 mm
- Guarantee
- 1 Year
- Height
- 99mm
- IP Rating
- IP20
- Material
- Polyamide
- Mounting
- DIN Rail
- Operation Type
- Single / Dual
- Packaging Types
- Each
- Product Range
- Electronic Safety Relays
- Standards
- EN ISO 13849, EN 62061, EN 61508, EN 50178, EN 60204
- Unspsc V18
- 39122205
- Unspsc V24
- 39122205
- Voltage Rating
- 24V DC
- Weight
- 0.22000kg
- Width
- 22.5mm
