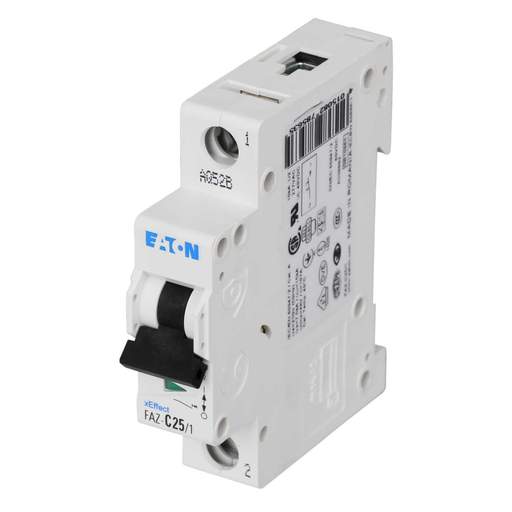

Moeller FAZ-C25/1 25A Single Pole 15kA C Curve MCB
Part Code: 278563
Stock Code: 1591-3051
Moeller FAZ-C25/1 25A Single Pole 15kA C Curve MCB
Part Code: 278563
Stock Code: 1591-3051
Features
- Suitable for general use in commercial or industrial applications where switching surges may cause nuisance tripping of type B breakers
- Contact position indicator red - green
- Guide for secure terminal connection
- 3-position DIN rail clip, permits removal from existing busbar system
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Current Rating
- 25A
- Depth
- 70.5mm
- Dimensions
- (H)80 mm x (W)17.5 mm x (D)70.5 mm
- Guarantee
- 1 Year
- Height
- 80mm
- Mounting
- DIN Rail
- Number of Poles
- Single Pole
- Operating Temperature Range
- -40 - 75°C
- Packaging Types
- Each
- Short Circuit Rating
- 15kA
- Standards
- EN 60947, EN 60898
- Tripping Characteristics
- C Curve
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 230V
- Weight
- 0.11800kg
- Width
- 17.5mm
