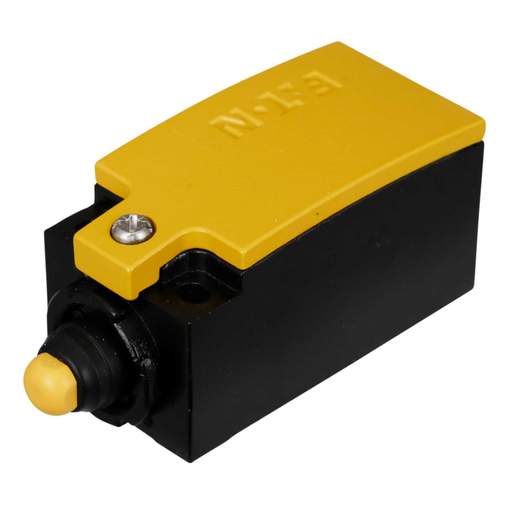

Moeller LSM-11 Metal Limit Switch with Rounded Plunger 1 NO + 1 NC Contact

Part Code: 266144

Stock Code: 1591-5145

Moeller LSM-11 Metal Limit Switch with Rounded Plunger 1 NO + 1 NC Contact

Part Code: 266144

Stock Code: 1591-5145

Delivery

13 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • LS-Titan series range
  • Designed for use in safety related circuits with a choice of operational heads
  • Metal body
  • Mechanically durability 1,000,000 operations

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Colour
Yellow/Black
Connection Type
Cage Clamp
Contact Configuration
1 NO + 1 NC
Depth
33.5mm
Dimensions
(H)76 mm x (W)31 mm x (D)33.5 mm
Frequency
0 - 400 Hz
Guarantee
1 Year
Head Type
Round Plunger
Height
76mm
IP Rating
IP66
Operating Temperature Range
-25 - 70°C
Packaging Types
Each
Product Range
LS-Titan Series
Standards
IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking
Suitable For
Electronic Devices
Type
Position Switch with Rounded Plunger
Unspsc V18
39122213
Voltage Rating
415V
Weight
0.0073kg
Width
31mm
