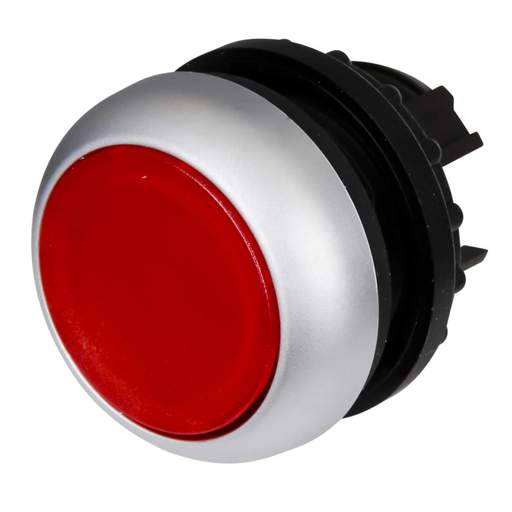

Moeller M22-DL-R Red Illuminated Pushbutton

Part Code: 216925

Stock Code: 1591-5739

Moeller M22-DL-R Red Illuminated Pushbutton

Part Code: 216925

Stock Code: 1591-5739

Delivery

12 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • M22 series offers a wide range of attractive, ergonomically designed illuminated and non-illuminated push buttons, selector switches, key switches, push-pulls, alternate action and twist-to-release operators
  • Connection to SmartWire-DT with SWD-RMQ connections
  • Single unit
  • Momentary function

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Colour
Red
Cut Out
22.5mm
Depth
29mm
Diameter
29.7mm
Dimensions
(Dia)29.7 mm x (D)29 mm
Finish
Chrome Front Ring
Guarantee
1 Year
IP Rating
IP67
Maximum Operating Temperature
70°C
Mechanical Shock Resistance
30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
Minimum Operating Temperature
-25°C
Mounting
Panel
Operation Type
Momentary
Packaging Types
Each
Product Range
RMQ Titan Push Buttons
Standards
EN 60947, UL 508, CSA C22.2 No 94-91 CE Marking
Storage Temperature Range
-40 - 80°C
Unspsc V18
39122216
Weight
0.069kg
