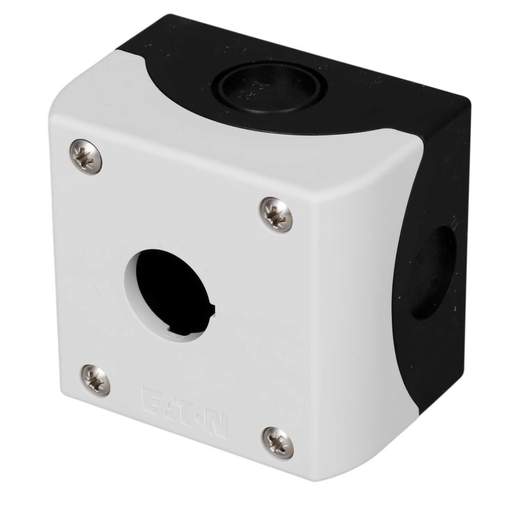

Moeller M22-I1 1 Way Plastic Pushbutton Station Grey IP67
Part Code: 216535
Stock Code: 1591-6063
Moeller M22-I1 1 Way Plastic Pushbutton Station Grey IP67
Part Code: 216535
Stock Code: 1591-6063
Features
- Designed for use with RMQ Titan rear mount contact blocks and contact blocks with LED elements
- Surface mounting enclosure
- With high-grade steel screws
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Cable Entry
- Bottom 2 x 16mm, Top 1 x 20mm, Lateral 1 x 20/25mm on Each Side
- Colour
- Grey
- Depth
- 56mm
- Dimensions
- (H)80 mm x (W)72 mm x (D)56 mm
- Guarantee
- 1 Year
- Height
- 80mm
- IP Rating
- IP67
- Material
- Plastic
- Mounting
- Surface
- Number of Ways
- 1
- Packaging Types
- Each
- Product Range
- RMQ-Titan
- Standards
- IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE Marking
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 0.08000kg
- Width
- 72mm
