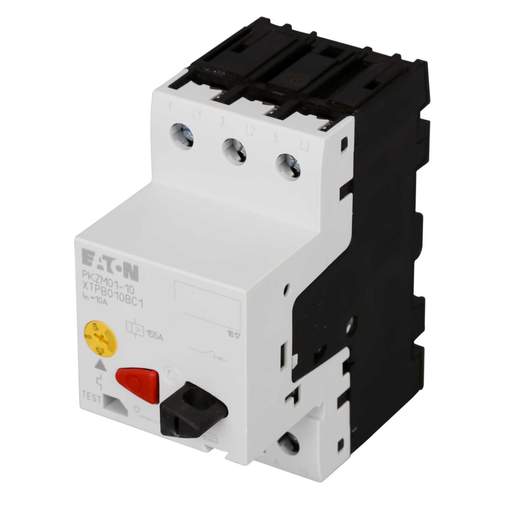

Moeller PKZM01-10 6.3 - 10A 3 Pole Motor Protective Circuit Breaker

Part Code: 278484

Stock Code: 1592-5867

Moeller PKZM01-10 6.3 - 10A 3 Pole Motor Protective Circuit Breaker

Part Code: 278484

Stock Code: 1592-5867

Delivery

6 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Provides isolation, short circuit and overload protection
  • Two button operation for starting and stopping motors
  • Lockable in the off position
  • Isolation Characteristics: IEC EN60947-3

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Colour
Black/Grey
Depth
90mm
Dimensions
(H)93 mm x (W)45 mm x (D)90 mm
Frequency
40/60 Hz
Guarantee
1 Year
Height
93mm
IP Rating
IP20
Mechanical Shock Resistance
25g Shock duration 10ms Half-Sinusoidal according to IEC 60068-2-27
Mounting
Din Rail
Number of Poles
3 Pole
Operating Temperature Range
-25 - 55°C
Overload Rating
6.3 - 10A
Packaging Types
Each
Product Range
PKZM0
Short Circuit Rating
60kA
Standards
IEC/EN 60947-4-1; UL 60947-4-1; CSA - C22.2 No. 60947-4-1-14; CE Marking
Storage Temperature Range
-40 - 80°C
Unspsc V18
39121521
Voltage Rating
690V
Weight
0.23kg
Width
45mm
