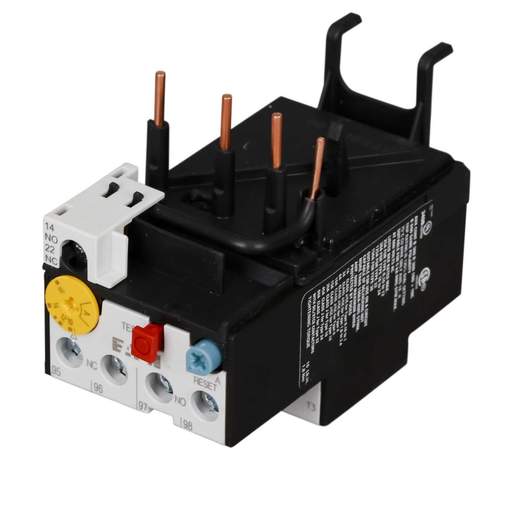

Moeller ZB32-16 10 to 16A Overload Relay

Part Code: 278452

Stock Code: 1593-1474

Moeller ZB32-16 10 to 16A Overload Relay

Part Code: 278452

Stock Code: 1593-1474

Delivery

7 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Mechanical reset
  • Test/Off button
  • Reset pushbutton manual/auto
  • 1NO + 1 NC contact configuration
  • Screw connection
  • IEC 60947
  • Frame C for DILM17, DILM25, DILM32 contactors

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Class Type
Class10
Colour
Black/Grey
Compliance
CSA UL
Depth
48mm
Dimensions
(H)83 mm x (W)45 mm x (D)48 mm
Guarantee
1 Year
Height
83mm
IP Rating
IP20
Mounting
Direct
Number of Pins
4
Operating Temperature Range
-25 - 55°C
Overload Rating
10 - 16A
Packaging Types
Each
Product Range
Overload Relay ZB Up To 150A
Standards
IEC/EN 60947, UL 60947, CSA - C22
Suitable For
DILM7, DILM9, DILM12, DILM15, DIULM7, DIULM9, DIULM12, SDAINLM12, SDAINLM16, SDAINLM22
Type
ZB32 - 16
Unspsc V18
39122330
Weight
0.22kg
Width
45mm
