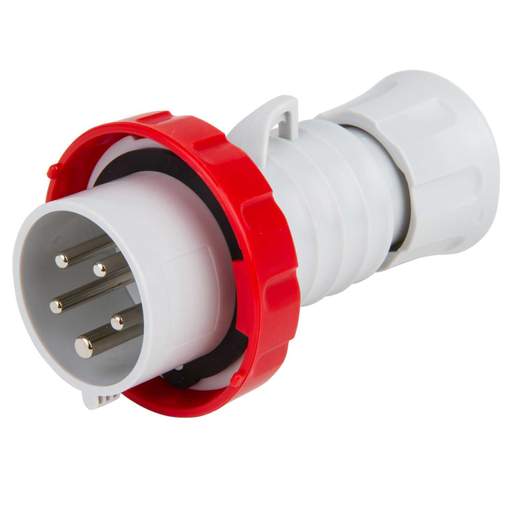

Gewiss 16A 3P+N+E 415V Plug IP67
Part Code: GW60031H
Stock Code: 1612-2358
Gewiss 16A 3P+N+E 415V Plug IP67
Part Code: GW60031H
Stock Code: 1612-2358
Features
- Halogen-free in compliance with EN 60754-2
- Screw terminals
- -25 55 °C operating temperature
- EN 60309-1 and EN 60309-2
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Gewiss
- Colour
- Red
- Current Rating
- 16A
- Diameter
- 89mm
- Dimensions
- (L)158 mm x (Dia)89 mm x (W)89 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- IP Rating
- IP67
- Length
- 158mm
- Material
- Self-Extinguishing Thermoplastic Polymer
- Mounting
- Trailing
- Number of Poles
- 3P N E
- Packaging Types
- Each
- Product Range
- Energy - Plugs and Sockets
- Standards
- IEC 309
- Unspsc V18
- 39121402
- Unspsc V24
- 39121402
- Voltage Rating
- 415V
- Weight
- 0.23481kg
- Width
- 89mm
