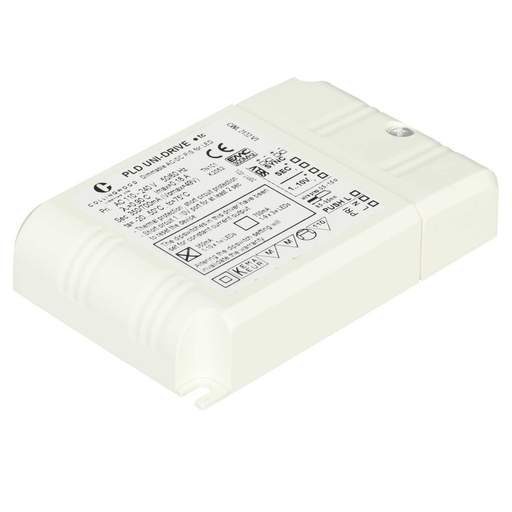

Collingwood 350mA 1-10V Dimmable LED Driver
Part Code: PLD UNI-DRIVE 350MA
Stock Code: 1633-0663
Collingwood 350mA 1-10V Dimmable LED Driver
Part Code: PLD UNI-DRIVE 350MA
Stock Code: 1633-0663
Features
- Constant current LED driver
- 1-10V and press to make compatible
- For 1-10 1W LED
- Min/Max load: 1-10 x LEDs @ 350mA
- Sync up to 10 units for dimming [1m sync cable included]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Collingwood Lighting
- Class Type
- Class 2
- Current Rating
- 350mA
- Dimensions
- (L)103 mm x (H)22 mm x (W)67 mm
- Dimmable
- Yes
- Efficacy Rating
- 80
- Guarantee
- 5 Years
- Height
- 22mm
- IP Rating
- IP20
- Input Voltage
- 230V
- Length
- 103mm
- Output Voltage
- 46V
- Packaging Types
- Each
- Power Rating
- 15W
- Previously Known As
- PLDUNI-DRIVE350MA
- Unspsc V18
- 39112103
- Unspsc V24
- 39112103
- Weight
- 0.10000kg
- Width
- 67mm
