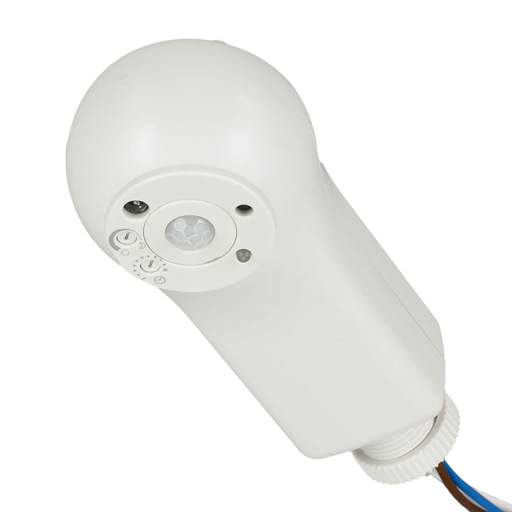

Danlers 5m Batten Mounted PIR Occupancy Switch White
Part Code: BMPIR5M
Stock Code: 1635-7624
Danlers 5m Batten Mounted PIR Occupancy Switch White
Part Code: BMPIR5M
Stock Code: 1635-7624
Features
- Can be mounted onto the end of lighting battens via the 20mm knock out
- Switch includes the connection 20mm thread and 1m of wire tails to connect to the lighting ballast
- Ideal for use in factories, warehouses, offices, schools, hospitals etc.
- Stylish, cost effective and easy to fit
- IP53 rated enclosure
- Real time photocell status indicator
- Easy to adjust photocell override facility
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Danlers
- Colour
- White
- Current Rating
- 10A
- Detection Angle
- 100°
- Detection Range
- 5m
- Guarantee
- 5 Years
- IP Rating
- IP53
- Lux Adjustment
- Yes
- Maximum Switching Load
- Incandescent - 2500W [10A] Mains Halogen - 750W [3A] LV Halogen - 750W [3A] Fluorescent - 1500W [6A] LED - 500W [2A] Energy Saving - 500W [2A]
- Mounting
- Batten
- Packaging Types
- Each
- Power Rating
- 2500W
- Size
- 120 mm x 50 mm x 36 mm
- Timer Adjustment
- 10 secs - 40 mins
- Type
- Batten Mounted PIR Switch - 5m Version
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.11000kg
