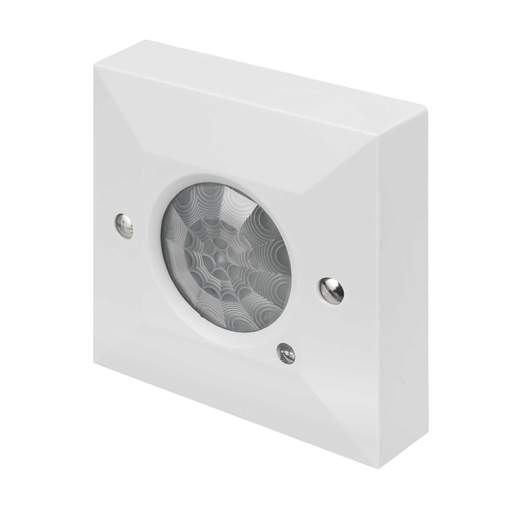

Danlers Ceiling Surface Mounted PIR Absence Switch White
Part Code: CESFAPIR
Stock Code: 1635-7630
Danlers Ceiling Surface Mounted PIR Absence Switch White
Part Code: CESFAPIR
Stock Code: 1635-7630
Features
- When someone enters a room the lights are turned on using a momentary light switch in the usual way
- When occupant leaves the room absense detector switch automatically switches the lights off
- Hard wired version
- Can be mounted on a square pattress box
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Danlers
- Colour
- White
- Current Rating
- 6A
- Detection Angle
- 360°
- Detection Range
- 7m
- Dimensions
- (L)86 mm x (H)25 mm x (W)86 mm
- Guarantee
- 5 Years
- Height
- 25mm
- Length
- 86mm
- Lux Adjustment
- Yes
- Maximum Switching Load
- Incandescent - 1500W [6A], Fluorescent - 1500W [6A], Mains Halogen - 750W [3A], LV Halogen - 750W [3A], LED - 500W [2A], Energy Saving - 500W [2A]
- Mounting
- Ceiling / Surface
- Packaging Types
- Each
- Power Rating
- 1500W
- Previously Known As
- CESF APIR
- Size
- 86 mm x 86 mm x 25 mm
- Standards
- BS EN 60669
- Timer Adjustment
- 10 secs - 40 mins
- Type
- PIR Absence Switch
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.12200kg
- Width
- 86mm
