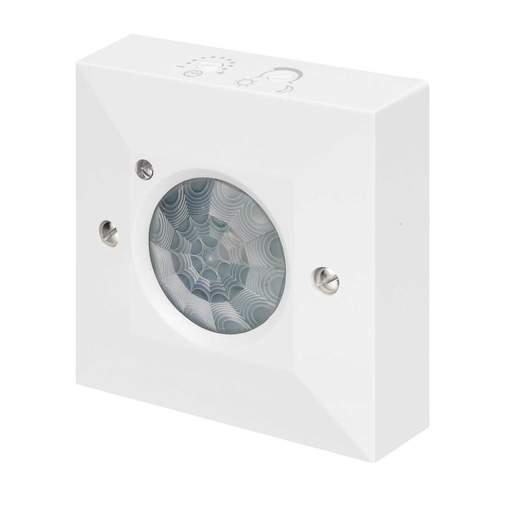

Autenco 360° Ceiling Surface Mount PIR Switch White
Part Code: AUTPIRSP
Stock Code: 1653-3046
Autenco 360° Ceiling Surface Mount PIR Switch White
Part Code: AUTPIRSP
Stock Code: 1653-3046
Features
- Suitable for mounting onto a back box at least 16mm deep
- Configurable for any room occupancy style, via time and lux level adjusters
- Switches on lighting load if area is occupied and if ambient lux level is less than adjusted level
- Switches off the lighting load if the area is unoccupied for the set time [up to 40 minutes]
- Also suitable for non lighting loads by setting the lux adjuster to the maximum point
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Autenco
- Colour
- White
- Depth
- 16mm
- Detection Angle
- 360°
- Detection Range
- 5m
- Dimensions
- (H)86 mm x (W)86 mm x (D)16 mm
- Guarantee
- 3 Years
- Height
- 86mm
- IP Rating
- IP20
- Lux Adjustment
- Yes
- Maximum Switching Load
- Incandescent - 1000W [4A], Fluorescent - 750W [3A], Halogen - 750W [3A], LED - 750W [3A], Energy Saving - 750W [3A]
- Mounting
- Ceiling / Surface
- Mounting Height
- 2.4m
- Packaging Types
- Each
- Power Rating
- 1000W
- Size
- 86mm x 86mm x 16mm
- Standards
- BS 7671
- Type
- Ceiling Surface Mount PIR Switch
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.11600kg
- Width
- 86mm
