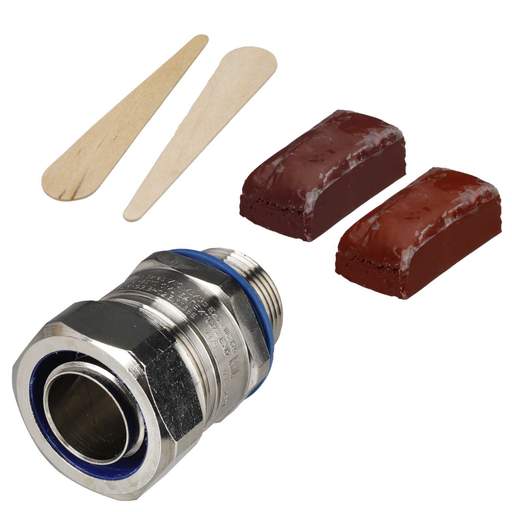

Flexicon LTP Range 25mm Male EXD Flameproof Liquid Tight Conduit Gland (Sold in 1's)
Part Code: LTP25-M25-EXD
Stock Code: 1656-6397
Flexicon LTP Range 25mm Male EXD Flameproof Liquid Tight Conduit Gland (Sold in 1's)
Part Code: LTP25-M25-EXD
Stock Code: 1656-6397
Features
- Can be used in Zones 1 , 2 , 20 , 21 and 22 hazardous areas
- Rated temperature range: -60°C to +85°C
- Nickel plated brass fitting with a nylon seal and two part epoxy resin pack
- High mechanical strength
- Liquid tight
- Supplied in boxes of one, complete with instructions and gloves
- IP66, IP67 , IP68 [5 bar 1hr] IP69
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Flexicon
- Diameter
- 25mm
- Dimensions
- (Dia)25 mm
- Finish
- Nickel Plated
- Guarantee
- 1 Year
- IP Rating
- IP66 / IP67 / IP68 / IP69
- Material
- Nickel Plated Brass
- Packaging Types
- Each
- Product Range
- LTP System
- Standards
- EN60079-0 2012, BS EN IEC 61386, ROhS
- Suitable For
- LTP Range OF Flexible Conduits
- Unspsc V18
- 39131708
- Unspsc V24
- 39131708
- Weight
- 0.26000kg
