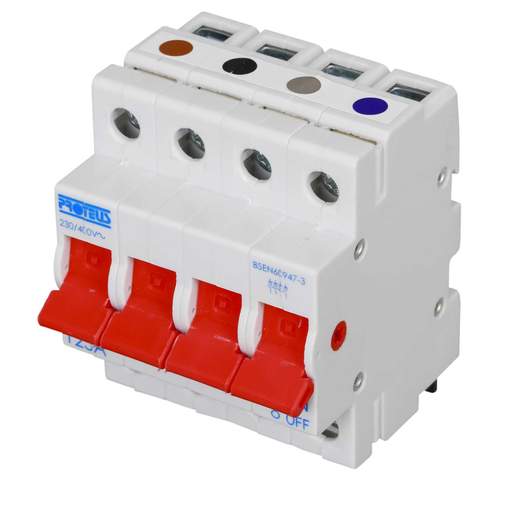

Proteus 125A Four Pole Switch Disconnector Isolator
Part Code: 125S4
Stock Code: 1667-6650
Proteus 125A Four Pole Switch Disconnector Isolator
Part Code: 125S4
Stock Code: 1667-6650
Features
- This range offers ratings from 45A up to 125A
- The operating dolly is capable of being locked in either the ON or OFF position
- When locked in ON position it will no longer function as an Switch Disconnector
- Positive indication of the contacts only occurs when dolly is in the OFF position
- Terminals are tunnel design and offer generous cable capacity of 50mm² for solid stranded conductors
- Busbar connectivity - thickness 3mm max
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Current Rating
- 125A
- Depth
- 67mm
- Dimensions
- (H)85 mm x (W)70 mm x (D)67 mm
- Guarantee
- 1 Year
- Height
- 85mm
- Incoming Terminal Capacity
- 50 mm
- Material
- Urea
- Mounting
- DIN Rail
- Number of Modules
- 4
- Number of Poles
- Four Pole
- Packaging Types
- Each
- Unspsc V18
- 39121108
- Unspsc V24
- 39121108
- Voltage Rating
- 230V 415V
- Weight
- 0.30000kg
- Width
- 70mm
