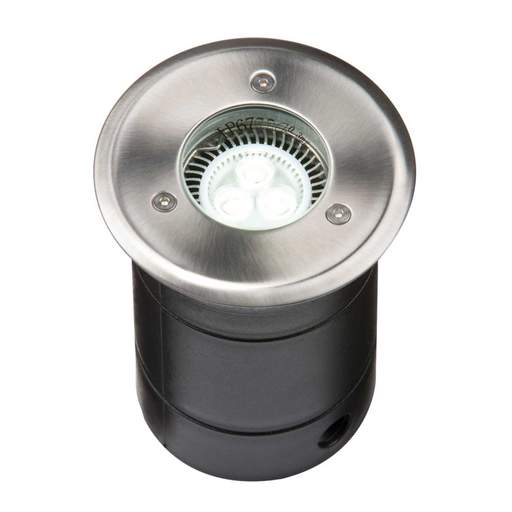

Knightsbridge WGULED GU10 Drive / Walk Over Stainless Steel Ground Light
Part Code: WGULED
Stock Code: 0118-9843
Knightsbridge WGULED GU10 Drive / Walk Over Stainless Steel Ground Light
Part Code: WGULED
Stock Code: 0118-9843
Features
- Grade 304 stainless steel drive / walk over light
- Requires GU10 lamp [not included]
- Electrical termination via 2 x 20mm compression glands in base of fitting
- Cut out without sleeve: 92mm
- Sleeve cut out: 92mm
- Complete with sleeve
- Suitable for drive over [max 1000kg at 5mph] when used in conjunction with sleeve in tarmac or concrete
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Knightsbridge
- Cap Type
- GU10
- Class Type
- Class 1
- Colour
- Stainless Steel
- Cut Out
- 92mm
- Depth
- 134mm
- Diameter
- 105mm
- Dimensions
- (Dia)105 mm x (D)134 mm
- Finish
- Stainless Steel
- Guarantee
- 1 Year
- IP Rating
- IP67
- Lamp Included
- No
- Lamp Type
- GU10/GZ10
- Lens Colour
- Clear
- Material
- 304 Stainless Steel
- Max Lamp Wattage
- 25W
- Mounting
- Recessed
- Number of Lamps
- 1
- Packaging Types
- Each
- Power Rating
- 25W
- Projection
- 6mm
- Shape
- Round
- Standards
- BS EN 60598
- Supplied With
- Sleeve
- Type
- Drive Over / Walk Over Light
- Unspsc V18
- 39111605
- Unspsc V24
- 39111605
- Voltage Rating
- 230V
- Weight
- 0.65000kg
