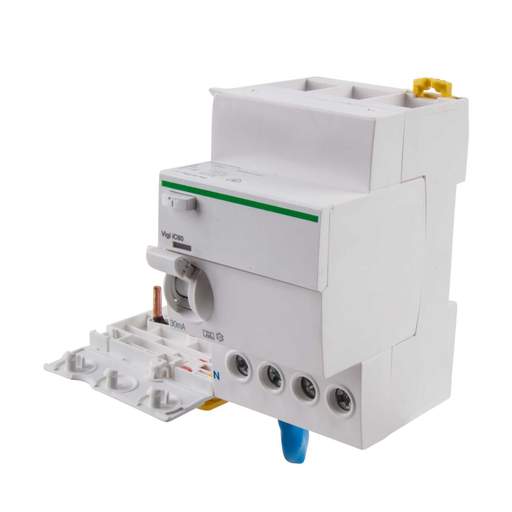

Schneider Acti9 63A 4 Pole 30mA Type A Add-On Vigi RCD
Part Code: A9V02763
Stock Code: 0012-5176
Schneider Acti9 63A 4 Pole 30mA Type A Add-On Vigi RCD
Part Code: A9V02763
Stock Code: 0012-5176
Delivery
99 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Neutral position left
- Network type AC
- Network frequency 50/60Hz
- Earth leakage sensitivity 30mA
- Earth leakage protection time delay instantaneous
- Earth leakage protection class A
- 9mm pitches x 6
- Voltage dependent residual current tripping technology
- Wire stripping length 14mm
- Tightening torque 3.5Nm
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 63A
- Depth
- 74mm
- Dimensions
- (H)87 mm x (W)126 mm x (D)74 mm
- Guarantee
- 18 Months
- Height
- 87mm
- Mounting
- DIN Rail
- Number of Modules
- 4
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Previously Known As
- MGV630304
- Product Range
- Acti9
- Rcd Type
- A
- Standards
- EN/IEC 61009-1
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 230V 400V
- Weight
- 0.298kg
- Width
- 126mm
