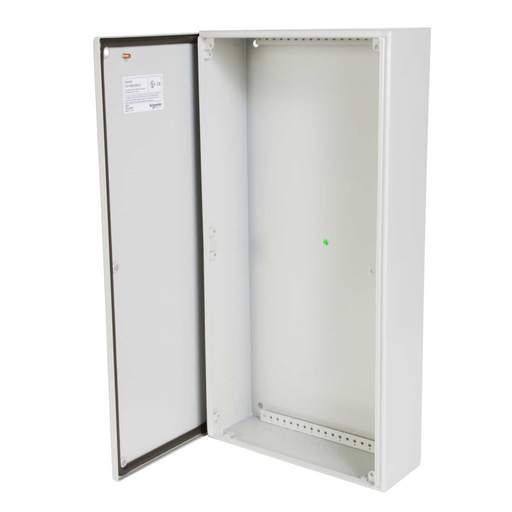

Schneider PanelSet 300mm x 600mm x 120mm Steel Enclosure IP66
Part Code: NSYSBM306012
Stock Code: 1780-1455
Schneider PanelSet 300mm x 600mm x 120mm Steel Enclosure IP66
Part Code: NSYSBM306012
Stock Code: 1780-1455
Features
- Mounting plate not supplied, to be ordered separately

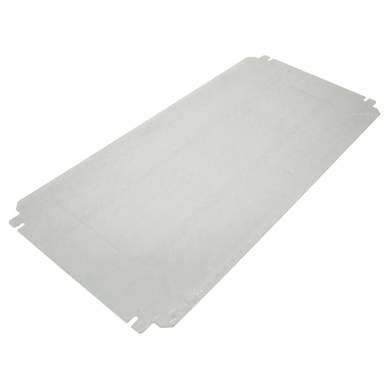

- Steel mounting plate part number is NSYMM36SB
- 1 x body, 1 x cover and 6 x cover screws
- Single piece body folded and welded
- Plain door
- RAL 7035 grey colour
- IP66 rated
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Light Grey RAL7035
- Depth
- 120mm
- Dimensions
- (H)300 mm x (W)600 mm x (D)120 mm
- Finish
- Epoxy Polyester Powder Coated
- Guarantee
- 18 Months
- Height
- 300mm
- IP Rating
- IP66
- Lockable
- Yes
- Material
- Sheet Steel
- Mounting
- Surface
- Packaging Types
- Each
- Product Range
- Spacial SBM
- Size
- 300mm x 600mm x 120mm
- Standards
- IEC 62208
- Suitable Mounting Plate
- NSYMM36SB
- Type
- Industrial Box
- Unspsc V18
- 39121324
- Unspsc V24
- 39121324
- Weight
- 6.72400kg
- Width
- 600mm
