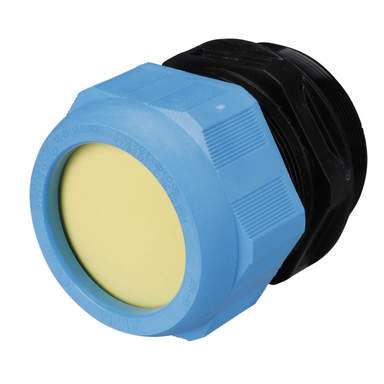

Wiska M63 Ex Cable Gland Only for Intrinsic Safety with Short Thread Blue
Part Code: 10103378
Stock Code: 1799-9242
Wiska M63 Ex Cable Gland Only for Intrinsic Safety with Short Thread Blue
Part Code: 10103378
Stock Code: 1799-9242
Features
- Locknut not included
- Explosion proof cable gland with connecting thread sealing ring for optimal sealing
- Temperature range: -40°C to 75°C
- Flame protection: glow wire test 750°C accurate to BS EN 60695-2-11
- 15mm thread length
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 G Ex eb IIC Gb II 2 D Ex tb IIIC Db
- Cable Entry
- 34 - 48 mm
- Certification Number
- UL22UKEX2678X Rev. 0
- Colour
- Blue
- Diameter
- 63mm
- Dimensions
- (Dia)63 mm
- Guarantee
- 1 Year
- IP Rating
- IP66 / IP68
- Material
- Body Polyamide, Sealing Gasket EPDM
- Packaging Types
- Each
- Product Range
- SPRINT® EX Cable Glands
- Size
- 63 mm
- Thread Pitch
- 1.5
- Thread Size
- 63mm
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 0.17300kg
- Zone Rating
- Zone 1 Zone 2
