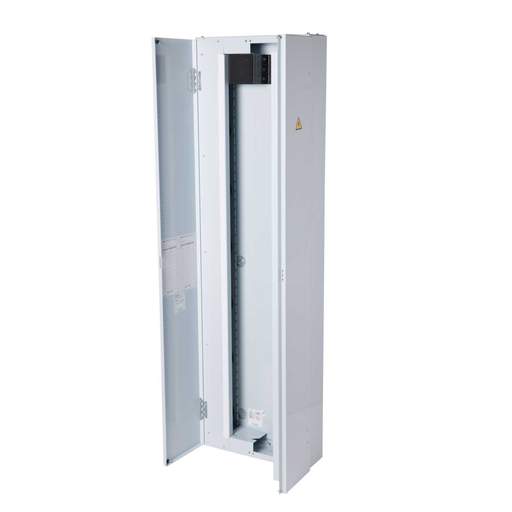

Schneider Square D I-Line 12 Way 250A 36 Module TP+N MCCB Panelboard without Incomer
Part Code: MP250121
Stock Code: 0121-1881
Schneider Square D I-Line 12 Way 250A 36 Module TP+N MCCB Panelboard without Incomer
Part Code: MP250121
Stock Code: 0121-1881
Features
- Single sided to give best possible space utilisation
- Incomers can be mounted at top or bottom of the panelboard
- Ample cabling space
- I-line busbar system
- Degree of protection IP3X
- Hinged lift off cable way cover
- Fully rated earth and neutral bars
- Removable top and bottom gland plates
- Busbar rating 50ka for 1s
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Square D
- Current Rating
- 250A
- Depth
- 184mm
- Dimensions
- (H)1727 mm x (W)508 mm x (D)184 mm
- Guarantee
- 1 Year
- Height
- 1727mm
- Incoming Device
- Not Supplied
- Material
- Steel
- Mounting
- Surface
- Number of Outgoing Ways
- 12
- Packaging Types
- Each
- Standards
- BS EN 60439
- Unspsc V18
- 39121103
- Unspsc V24
- 39121103
- Voltimum+Points
- 500
- Weight
- 76.00000kg
- Width
- 508mm
