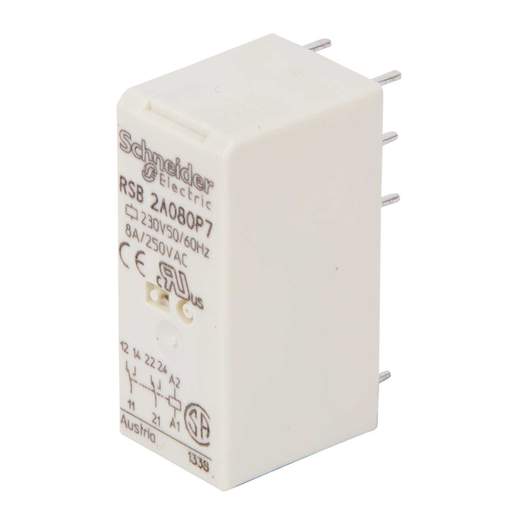

Schneider Harmony Relay 8 Pin 8A 230V AC Interface Plug In Relay
Part Code: RSB2A080P7
Stock Code: 0121-5061
Schneider Harmony Relay 8 Pin 8A 230V AC Interface Plug In Relay
Part Code: RSB2A080P7
Stock Code: 0121-5061
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Coil Voltage
- 230V AC
- Contact Configuration
- 2 CO
- Current Rating
- 8A
- Depth
- 20mm
- Dimensions
- (H)29 mm x (W)13 mm x (D)20 mm
- Guarantee
- 18 Months
- Height
- 29mm
- IP Rating
- IP40
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Number of Pins
- 8
- Packaging Types
- Each
- Product Range
- Zelio Relay
- Standards
- EN/IEC 61810-1, UL 508, CSA C22 No 14
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Weight
- 0.01400kg
- Width
- 13mm
