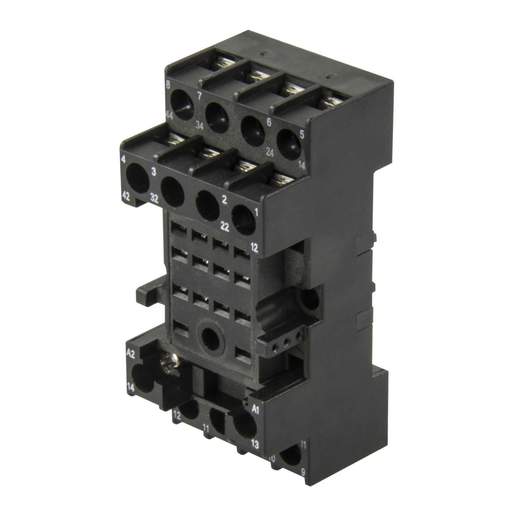

MCG 14 Pin Relay Base for JZX18 Relay
Part Code: 18-4Z-C7
Stock Code: 1829-8501
MCG 14 Pin Relay Base for JZX18 Relay
Part Code: 18-4Z-C7
Stock Code: 1829-8501
Features
- To suit 14 Pin Relays (JZX18 Series)
- DIN rail mount socket
- IP20 touch-proof terminals
- Approvals UL & CE
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black
- Compliance
- CE, UL
- Current Rating
- 6A
- Depth
- 29mm
- Dimensions
- (H)63 mm x (W)30.3 mm x (D)29 mm
- Guarantee
- 1 Year
- Height
- 63mm
- IP Rating
- IP20
- Material
- PA66+GF VO (UL)
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- DIN Rail
- Number of Pins
- 14
- Packaging Types
- Each
- Pole Amperage
- 7A
- Product Range
- JZX18 Series
- Suitable For
- 14 Pin Relays (JZX18 Series)
- Terminal Type
- Screw
- Unspsc V18
- 39122335
- Unspsc V24
- 39122335
- Voltage Rating
- 250V
- Weight
- 0.05500kg
- Width
- 30.3mm
