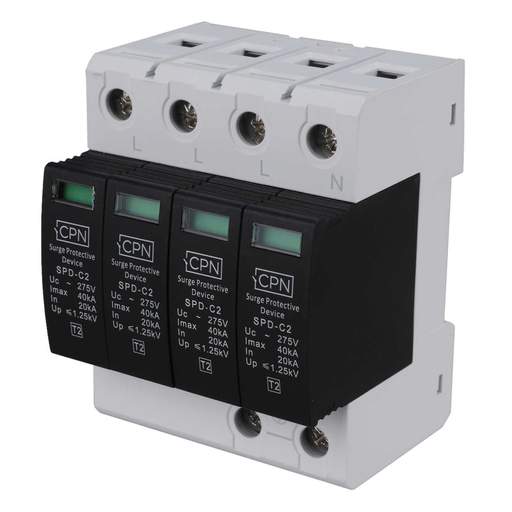

Cudis 40kA 4 Module 4 Pole Type 2 Surge Protector
Part Code: SPD-4PC2
Stock Code: 1853-2837
Cudis 40kA 4 Module 4 Pole Type 2 Surge Protector
Part Code: SPD-4PC2
Stock Code: 1853-2837
Features
- For protection and life extension of electrical and electronic equipment
- 1, 2, 3 and 4 Pole versions available
- 1 Pole Neutral and Earth and 3 Pole Neutral and Earth available
- Type 1, 2 and 3 SPD’s available
- Must be used inconjunction with an over current protection device no greater than 63A SPD’s do not draw current during normal non-transient operation
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Cudis
- Depth
- 62mm
- Dimensions
- (H)90 mm x (W)72 mm x (D)62 mm
- Guarantee
- 1 Year
- Height
- 90mm
- Incoming Terminal Capacity
- Rigid 35 mm² Flexible 25 mm²
- Maximum Discharge Current
- 40kA
- Mounting
- DIN Rail
- Number of Modules
- 4
- Number of Poles
- Four Pole
- Outgoing Terminal Capacity
- Rigid 35 mm² Flexible 25 mm²
- Packaging Types
- Each
- Standards
- EN 61643
- Suitable For
- TN-S Earthing
- Terminal Capacity
- 35mm²
- Type
- 2
- Unspsc V18
- 39121634
- Unspsc V24
- 39121634
- Weight
- 0.51700kg
- Width
- 72mm
