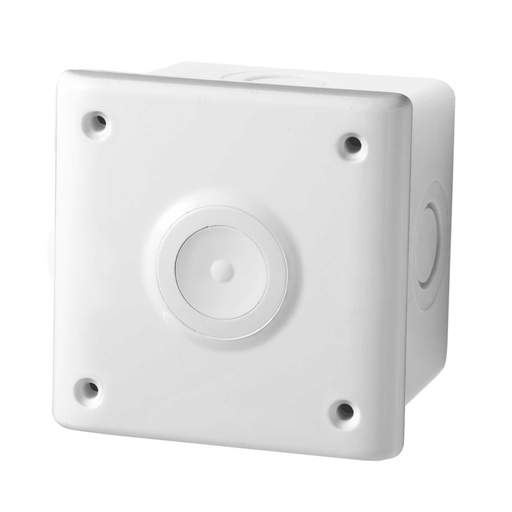

Levante 3 Wire IP66 Outdoor Electronic Push Button Time Delay Switch
Part Code: LEV3WPB/IP66
Stock Code: 1865-9902
Levante 3 Wire IP66 Outdoor Electronic Push Button Time Delay Switch
Part Code: LEV3WPB/IP66
Stock Code: 1865-9902
Features
- Easy to install and operate
- 10A rated regardless of load type
- Adjustable from 2 mins to 1 hour
- Neutral required
- Please note: LEVPFCC capacitor will often be required when switching certain types of loads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cancellation Function
- Yes
- Colour
- White
- Compliance
- CE
- Current Rating
- 10A
- Depth
- 65mm
- Dimensions
- (H)85 mm x (W)85 mm x (D)65 mm
- Guarantee
- 6 Years
- Height
- 85mm
- IP Rating
- IP66
- Material
- ABS
- Mounting
- Wall
- Number of Wire Connections
- 3
- Packaging Types
- Box
- Re Trigger Function
- Yes
- Standards
- BS EN 60669-2-3:2006 (Ed 4), BS EN 60669-2-1 2002 (Ed 3), BS EN 60669-1 1998 A1:1999
- Suitable For
- Resistive, Incandescent, Fluorescent, Compact Fluorescent and LED Loads
- Timer Range
- 2 - 60
- Type
- Pushbutton
- Unspsc V18
- 39122208
- Unspsc V24
- 39122208
- Voltage Rating
- 230V
- Weight
- 0.25400kg
- Width
- 85mm
