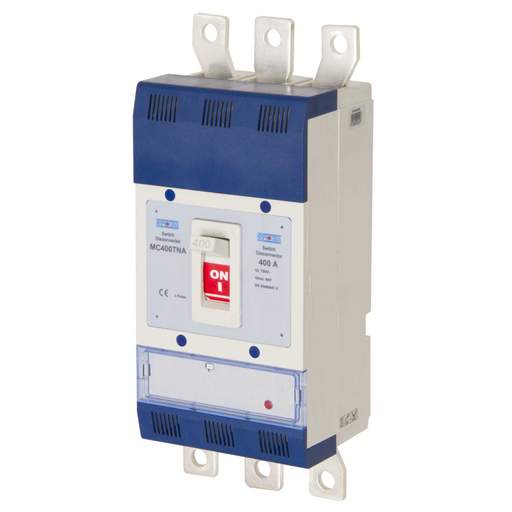

Proteus 400A Triple Pole 36kA Non-Auto MCCB
Part Code: MC400TNA
Stock Code: 1867-6213
Proteus 400A Triple Pole 36kA Non-Auto MCCB
Part Code: MC400TNA
Stock Code: 1867-6213
Features
- Range has four frames available
- Available in ratings from 16-800A
- Interrupting capacities up to 36kA at 400/415V AC
- Standard calibration is at 40 degrees
- Current limiting design
- May be fitted as outgoing MCCB in MC panelboards
- Available as individually enclosed circuit protection devices
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Compliance
- BS EN 60947
- Current Rating
- 400A
- Depth
- 103mm
- Dimensions
- (H)345 mm x (W)139 mm x (D)103 mm
- Guarantee
- 1 Year
- Height
- 345mm
- Incoming Terminal Capacity
- 240mm² (Lugged M12)
- Mounting
- Panel
- Number of Poles
- Triple Pole
- Outgoing Terminal Capacity
- Lugged M12
- Packaging Types
- Each
- Product Range
- MC Range
- Short Circuit Rating
- 36kA
- Standards
- IEC / EN 60947-2
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Voltage Rating
- 400V
- Weight
- 5.70000kg
- Width
- 139mm
