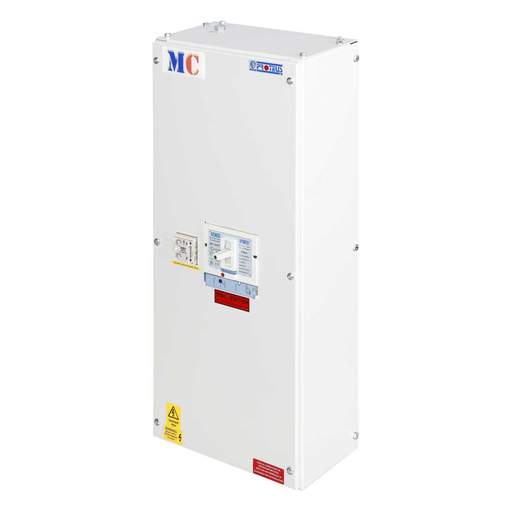

Proteus 160A TP&N 36kA Enclosed MCCB with Adjustable Type A Earth Leakage Unit
Part Code: MCEL160T
Stock Code: 1867-6258
Proteus 160A TP&N 36kA Enclosed MCCB with Adjustable Type A Earth Leakage Unit
Part Code: MCEL160T
Stock Code: 1867-6258
Features
- Available in ratings from 100 - 800A
- Interrupting capacities up to 36kA at 400/415V AC
- Standard calibration is at 40 degrees
- Current limiting design
- May be fitted to outgoing MCCB in MC panelboards
- Available as individually enclosed circuit protection devices
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Current Rating
- 160A
- Depth
- 170mm
- Dimensions
- (H)700 mm x (W)300 mm x (D)170 mm
- Guarantee
- 1 Year
- Height
- 700mm
- IP Rating
- IP3X
- Incoming Terminal Capacity
- 120mm² Box Terminal
- Material
- Full Cold Rolled Steel enclosure for Maximum Robustness
- Mounting
- Surface
- Number of Poles
- Triple Pole
- Packaging Types
- Each
- Product Range
- MC Range
- Short Circuit Rating
- 36kA
- Standards
- BS EN60947-1 & 2, IEC 60755, IEC 62020, IEC 61543
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Voltage Rating
- 230V 400V
- Weight
- 12.62000kg
- Width
- 300mm
