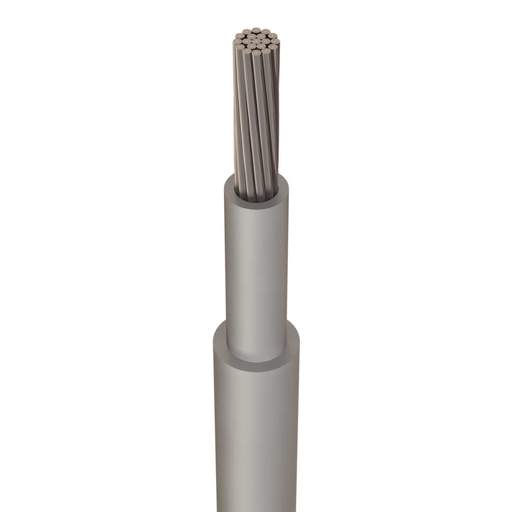

6381Y 25mm² Cable Grey/Grey (Cut Length Sold By The Metre)
Part Code: 6381Y25GG
Stock Code: 1877-4190
6381Y 25mm² Cable Grey/Grey (Cut Length Sold By The Metre)
Part Code: 6381Y25GG
Stock Code: 1877-4190
Features
- Suitable for AC and DC power supplies for Telecom equipment and power applications
- Cable is a power cable suited to applications where flexibility is important
- With its class 5 plain copper conductors, 6381Y Cable sits apart from other more rigid power cables
- Insulation PVC [Polyvinyl Chloride]
- Flame retardant
- 450/750V
- Meets requirements for flammability as required by BT Specification M236
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey/Grey
- Conductor Size
- 25mm²
- Core Colours
- Black, Grey, Blue, Brown and Green/Yellow
- Cross Sectional Area
- 25.00mm²
- External Diameter
- 11.50mm
- Guarantee
- 1 Year
- Number of Cores
- 1
- Operating Temperature
- 70°C
- Packaging Types
- Metre
- Previously Known As
- 6381Y725G/G
- Product Range
- 6381Y
- Sheath
- Polyvinyl Chloride
- Sheath Thickness
- 1.1mm
- Standards
- BS 6004
- Unspsc V18
- 26121628
- Unspsc V24
- 26121628
- Voltage Rating
- 450V 750V
- Weight
- 0.33600kg
