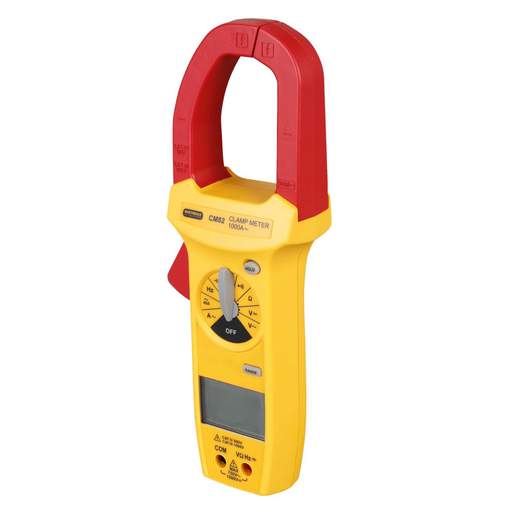

Martindale CM82 1000A Digital Clamp Meter
Part Code: CM82
Stock Code: 1895-2465
Martindale CM82 1000A Digital Clamp Meter
Part Code: CM82
Stock Code: 1895-2465
Features
- High specification clamp meter for the testing and maintenance of domestic and industrial installations
- Current measurement up to 1000A AC
- Voltage measurement up to 750V AC / 1000V DC
- Resistance measurement up to 40MΩ
- Capacitance, frequency and diode ranges
- Light enough for easy one handed operation but still robust enough for use in harsh environments
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Martindale
- Ac Current Measurement
- 1000A
- Ac Voltage Measurement
- 750V AC
- Auto Power Down
- Yes
- Auto Ranging
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- PP3
- Battery Type
- Alkaline
- Capacitance Measurement
- 4
- Continuity Check
- Yes
- Data Hold
- Yes
- Dc Voltage Measurement
- 1000V DC
- Depth
- 53mm
- Dimensions
- (H)279 mm x (W)103 mm x (D)53 mm
- Display Count
- 4000
- Display Type
- LCD
- Frequency Measurement
- 1 MHz
- Guarantee
- 2 Years
- Height
- 279mm
- Humidity Range
- Up to 80% RH
- Jaw Opening Capability
- 51mm
- Number of Batteries
- 1
- Operating Temperature Range
- 0 - 50°C
- Packaging Types
- Each
- Previously Known As
- MARCM82
- Product Range
- Clamp Meter
- Resistance Measurement
- 40 MΩ
- Safety Range
- CAT III 1000V, CAT IV 600V
- Standards
- BS EN 61326-1
- Storage Temperature Range
- -20 - 60°C
- Supplied With
- Carrying Case, Set of TL16 Test Leads, 9V PP3 Battery (Installed), Instructions
- Type
- AC Clamp Meter
- Unspsc V18
- 41113678
- Unspsc V24
- 41113678
- Video Url
- https://www.youtube.com/embed/9fZ5Xkmx4u8
- Weight
- 0.01000kg
- Width
- 103mm
