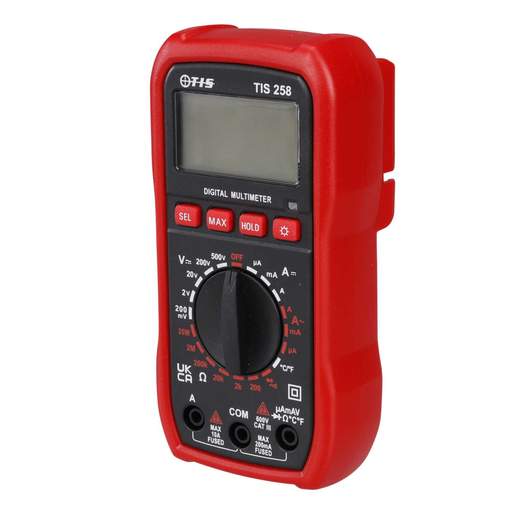

TIS 258 Digital Multimeter
Part Code: TIS 258
Stock Code: 1915-7926
TIS 258 Digital Multimeter
Part Code: TIS 258
Stock Code: 1915-7926
Features
- AC voltage measurement ranges 200V - 500V
- DC voltage measurement ranges 200mV - 500V
- DC current measurement ranges 200µA - 10A
- Resistance measurement ranges 200Ω - 2MΩ
- Temperature, continuity and diode test ranges
- Supplied with a temperature probe
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Test Instrument Solutions
- Ac Voltage Measurement
- 500V AC
- Auto Power Down
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- AAA
- Battery Type
- Alkaline
- Compliance
- CE
- Continuity Check
- Yes
- Data Hold
- Yes
- Dc Current Measurement
- 10A DC
- Dc Voltage Measurement
- 500V DC
- Depth
- 40mm
- Dimensions
- (H)145 mm x (W)76 mm x (D)40 mm
- Display Count
- 2000
- Display Type
- LCD
- Fused
- Yes
- Guarantee
- 1 Year
- Height
- 145mm
- Number of Batteries
- 2
- Packaging Types
- Each
- Previously Known As
- TIS258
- Product Range
- Digital Multimeters
- Resistance Measurement
- 2 MΩ
- Safety Range
- CAT III 500V
- Standards
- EN 61010, EN 61326
- Supplied With
- Test Leads and Thermocouple
- Unspsc V18
- 41113630
- Unspsc V24
- 41113630
- Weight
- 0.20200kg
- Width
- 76mm
