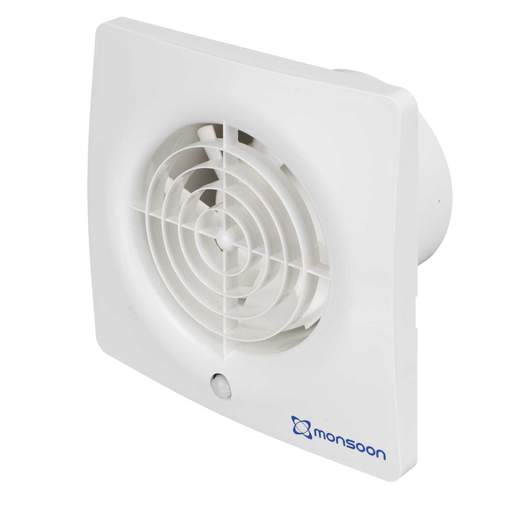

National Ventilation 100mm 4'' Axial Flow Fan with PIR

Part Code: MONS100PIRA

Stock Code: 1917-4906

National Ventilation 100mm 4'' Axial Flow Fan with PIR

Part Code: MONS100PIRA

Stock Code: 1917-4906

Delivery

85 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Low noise as low as 25 dB(A) suitable for Zone 1
  • Specific fan power as low as 0.27 W/L/S
  • IP45 (as long as RCD is present)
  • Fan can be used with longer duct runs due to its mix-flow impeller but ducting will effect the fan performance
  • Long life ball bearing motors, service life 40,000 hours
  • Complete with backdraught shutters to prevent back flow and heat loss
  • Rubber anti-vibration mounts are designed for motor vibration absorption and noise insulation
  • Specially designed air flow vanes reduce air turbulence, boost air pressure and reduce noise levels
  • Complies with both Part F & L
  • Standard thermal overload protection on motor

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Airflow Cubic Metresper Hour
97 m³/h
Airflow Litresper Second
27 l/s
Colour
White
Decibel Rating
25 dB[A] @ 3 m
Depth
107mm
Dimensions
(H)158 mm x (W)158 mm x (D)107 mm
Ducting Size
100mm
Frequency
50/60 Hz
Guarantee
3 Years
Height
158mm
Hole Size
99mm
IP Rating
IP45
Material
ABS
Mounting
Wall / Ceiling
Operation Type
PIR
Packaging Types
Each
Power Rating
7.5W
Previously Known As
MON-S100PIR
Product Range
Monsoon Silence Range
Size
48"
Unspsc V18
40101502
Voltage Rating
230V
Weight
0.55kg
Width
158mm
Zone Rating
Zone 1
