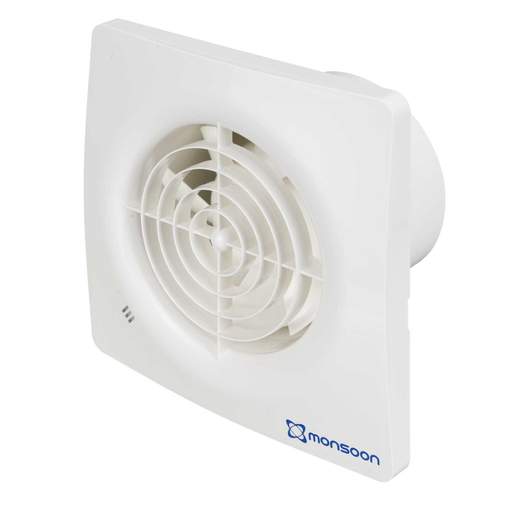

National Ventilation 100mm 4" Standard Axial Flow Fan
Part Code: MONS100SA
Stock Code: 1917-4909
National Ventilation 100mm 4" Standard Axial Flow Fan
Part Code: MONS100SA
Stock Code: 1917-4909
Features
- Low noise as low as 25 dB(A) suitable for Zone 1
- Specific fan power as low as 0.27 W/L/S
- IP45 [as long as RCD is present]
- Fan can be used with longer duct runs due to its mix-flow impeller but ducting will effect the fan performance
- Long life ball bearing motors, service life 40,000 hours
- Complete with backdraught shutters to prevent back flow and heat loss
- Rubber anti-vibration mounts are designed for motor vibration absorption and noise insulation
- Specially designed air flow vanes reduce air turbulence, boost air pressure and reduce noise levels
- Complies with both Part F & L
- Standard thermal overload protection on motor
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Airflow Cubic Metresper Hour
- 97 m³/h
- Airflow Litresper Second
- 27 l/s
- Colour
- White
- Decibel Rating
- 25 dB[A] @ 3 m
- Depth
- 107mm
- Dimensions
- (H)158 mm x (W)158 mm x (D)107 mm
- Ducting Size
- 100mm
- Frequency
- 50/60 Hz
- Guarantee
- 3 Years
- Height
- 158mm
- Hole Size
- 99mm
- IP Rating
- IP45
- Material
- ABS
- Mounting
- Wall / Ceiling
- Operation Type
- Standard
- Packaging Types
- Each
- Power Rating
- 7.5W
- Previously Known As
- MONS-S100
- Product Range
- Monsoon Silence Range
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 0.55000kg
- Width
- 158mm
- Zone Rating
- Zone 1
