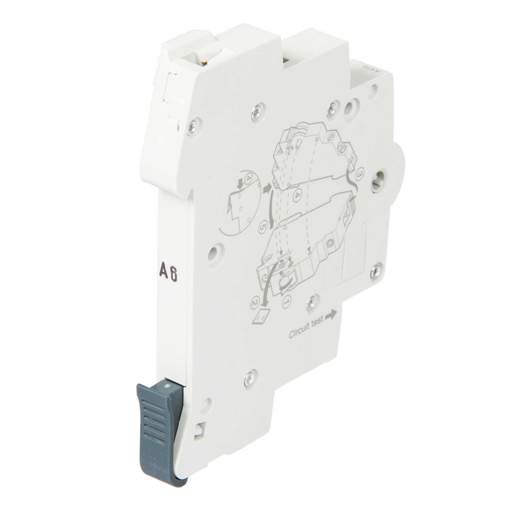

Hager MCB Auxiliary with 1 NO and 1 NC Contact
Part Code: MZ201
Stock Code: 0012-9775
Hager MCB Auxiliary with 1 NO and 1 NC Contact
Part Code: MZ201
Stock Code: 0012-9775
Features
- All auxiliaries are common to both single and multi-pole 10kA circuit breakers and RCDs
- Connection capacity 4mm² flexible 6mm² rigid
- Allows remote indication of main contact status
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 6A
- Depth
- 40mm
- Dimensions
- (H)80 mm x (W)9.5 mm x (D)40 mm
- Guarantee
- 2 Years
- Height
- 80mm
- Mounting
- DIN Rail
- Number of Poles
- Single Pole
- Packaging Types
- Each
- Product Range
- Auxiliaries and Accessories for Devices
- Type
- Auxiliary Contacts 5A-230V
- Unspsc V18
- 39121108
- Unspsc V24
- 39121108
- Voltage Rating
- 230V
- Weight
- 0.05500kg
- Width
- 9.5mm
