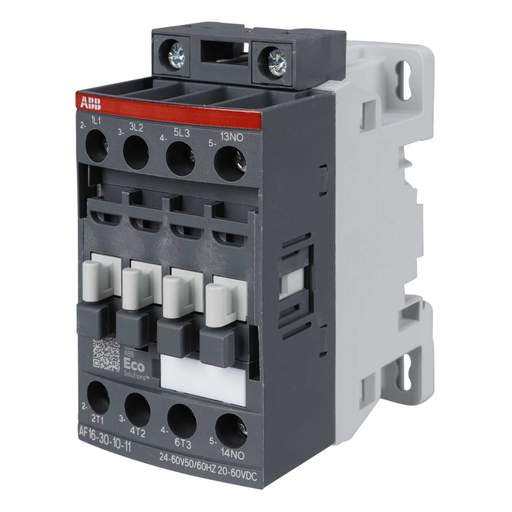

ABB AF16 30A Contactor 3 Pole 3 NO Contacts 20V-60V Coil
Part Code: 1SBL177001R1110
Stock Code: 1960-6795
ABB AF16 30A Contactor 3 Pole 3 NO Contacts 20V-60V Coil
Part Code: 1SBL177001R1110
Stock Code: 1960-6795
Features
- AF contactors are mainly used for controlling 3 phase motors and power circuits
- Contactors are of the block type design with 3 main poles
- AC or DC control circuit operated with electronic coil interface accepting a wide control voltage range
- Rated control circuit voltage: 24V - 60V 50/60 Hz / 20V - 60V DC
- Rated operational power: 400V AC-3 7.5kW
- Rated operational current: AC-1 30A
- 3 Phase motor rating: 480V 10hp
- General use rating: 600V AC 30A
- Built-in surge suppression
- Auxiliary contacts fitted: 1NO
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Auxiliary Contact
- 1 NO
- Coil Voltage
- 60V
- Colour
- Black/Grey
- Contact Configuration
- 3 NO
- Current Rating Ac1
- 30A
- Depth
- 77mm
- Dimensions
- (H)86 mm x (W)45 mm x (D)77 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 86mm
- Mounting
- DIN Rail
- Number of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- AF16
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 0.27000kg
- Width
- 45mm
- kW Rating
- 7.5kW
