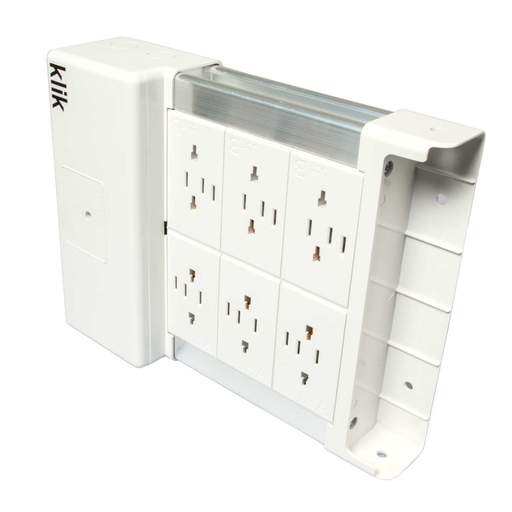

Hager Klik 6 Outlet Marshalling Box
Part Code: KLDS6
Stock Code: 0010-4812
Hager Klik 6 Outlet Marshalling Box
Part Code: KLDS6
Stock Code: 0010-4812
Delivery
311 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Main terminal capacity: 5x4mm²
- Flexible conducter terminal capacity: 1x1mm²
- All socket outlets are factory connected and tested
- All plastic is 'V0' rated
- Socket outlets accept either klik lighting 3 pin plugs, klik AX 4 pin plugs and klik pre-wired leads
- Cable entries will accept 20mm or can be drilled out to 25mm
- Self-retained cover screw
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Current Rating
- 16A
- Depth
- 73mm
- Dimensions
- (H)222 mm x (W)288 mm x (D)73 mm
- Guarantee
- 1 Year
- Height
- 222mm
- Material
- Aluminium/Phosphor Bronze
- Mounting
- Ceiling / Wall
- Number of Outlets
- 6
- Packaging Types
- Each
- Product Range
- Marshalling Boxes
- Standards
- BS 5733
- Type
- Klik. Lighting Distribution System
- Unspsc V18
- 39121303
- Unspsc V24
- 39121303
- Voltage Rating
- 230V
- Weight
- 1.347kg
- Width
- 288mm
