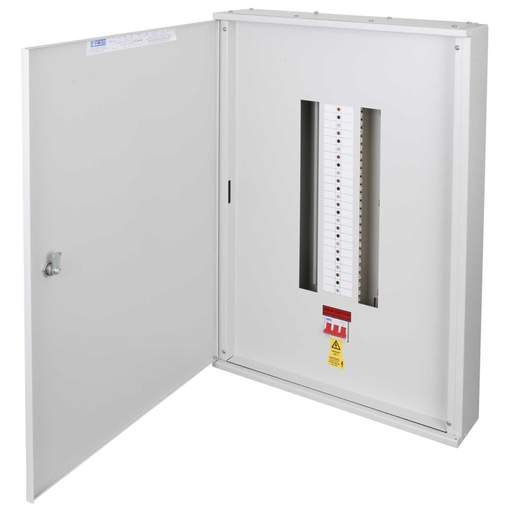

Proteus XL 20 Way 125A TP+N Type B Distribution Board with 125A Isolator Incomer
Part Code: XL20S125
Stock Code: 1993-2244
Proteus XL 20 Way 125A TP+N Type B Distribution Board with 125A Isolator Incomer
Part Code: XL20S125
Stock Code: 1993-2244
Features
- XL range has over 100% more cabling space than standard 3 phase distribution boards
- Lockable door option available
- Pre-cut endplates are available for trunking applications
- Removable door and pan assembly for ease of installation
- Pre-fitted switch disconnector or RCD incomer options to reduce assembly on site
- Dual earth and neutral terminal bars
- Removable gland/endplates
- Accepts MCB's from 2A to 63A [17.5mm] wide module
- Accepts RCBO's from 2A to 45A [17.5mm] wide module
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus XL
- Busbar Rating
- 125A
- Current Rating
- 125A
- Depth
- 132mm
- Dimensions
- (H)942 mm x (W)600 mm x (D)132 mm
- Door Type
- Hinged Door
- Guarantee
- 1 Year
- Height
- 942mm
- IP Rating
- IP31
- Incoming Device
- 125A TP Isolator
- Incoming Terminal Capacity
- 50mm²
- Material
- Full Cold Rolled Steel enclosure for Maximum Robustness
- Mounting
- Surface
- Number of Outgoing Ways
- 20
- Packaging Types
- Each
- Product Range
- XL Boards
- Standards
- BS EN 61439-3
- Supplied With
- 125A TP Switch Disconnector
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 415V
- Weight
- 20.00000kg
- Width
- 600mm
