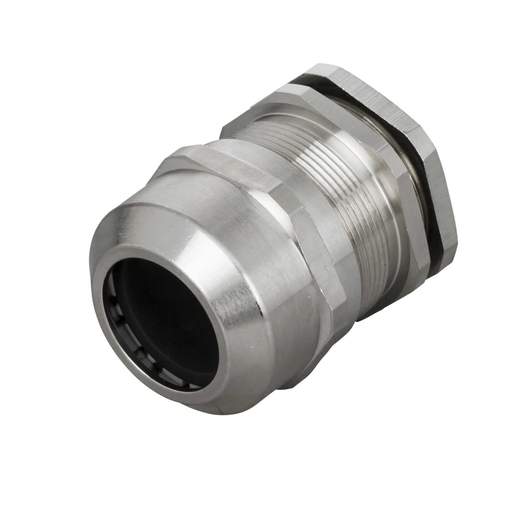

Wiska 40mm Brass Cable Gland LSF with Multiple Insert, Locknut and Blanks IP68
Part Code: 10106234
Stock Code: 2017-2952
Wiska 40mm Brass Cable Gland LSF with Multiple Insert, Locknut and Blanks IP68
Part Code: 10106234
Stock Code: 2017-2952
Features
- Provides a solution for the wiring of the new amendment 3 compliant consumer units
- Utilising their unique inserts, they allow metre tails and earth wire to be installed through one insert, providing cable retention, no eddy currents, and whilst being mindful to maintain the appropriate fire integrity of the board
- Insert is suitable for 2 x 25mm² / 1 x 16mm² cables
- Blanking plug included if earth cable not required
- Vibration resistant
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 16 - 28 mm
- Guarantee
- 1 Year
- IP Rating
- IP68
- Installation Torque
- 20Nm
- Material
- Brass nickel-plated
- Packaging Types
- Each
- Previously Known As
- TKE/B 40
- Suitable For
- 2 x 25 mm² + 1 x 16 mm²
- Thread Size
- 40mm
- Thread Size Male
- 8mm
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 0.21650kg
