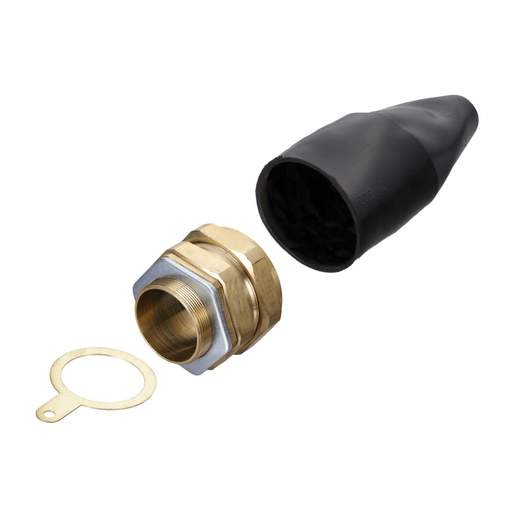

Unicrimp 50CW PVC SWA Gland Pack Outdoor (Pack of 1)
Part Code: QCW50
Stock Code: 1975-5796
Unicrimp 50CW PVC SWA Gland Pack Outdoor (Pack of 1)
Part Code: QCW50
Stock Code: 1975-5796
Features
- For use with all types of Steel Wire Armour [SWA] cable
- Providing mechanical cable retention and electrical continuity via armour wire termination
- Mainly used in outdoor conditions as it has an outer IP sheath seal
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Type
- SWA
- Gland Type
- 50 CW
- Guarantee
- 1 Year
- IP Rating
- IP65
- Material
- Brass
- Packaging Types
- Pack
- Product Range
- Q-Crimp
- Size
- 50 mm
- Standards
- BS 6121-1:2005, BS EN 60529: 1992 A2: 2013
- Suitable For
- Outdoor Use
- Supplied With
- 1 x Gland, 1 x Galvanised Lock Nut, 1 x Earth Tag and 1 x PVC Shroud
- Thread Pitch
- 1.5
- Thread Size
- 50mm
- Type
- CW
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 0.92930kg
