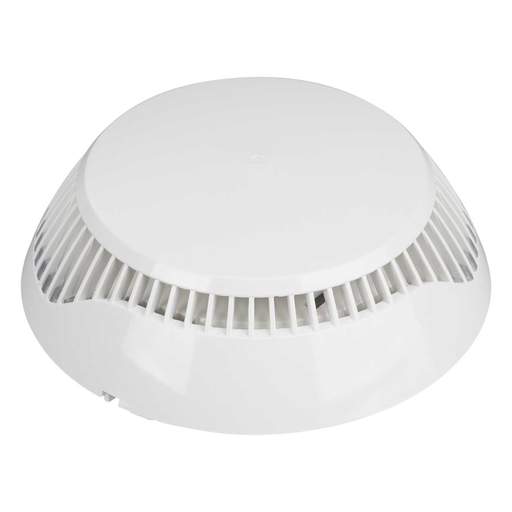

Magfire MAGPRO Addressable Heat Detector
Part Code: MAGPRO-HD1
Stock Code: 2025-4813
Magfire MAGPRO Addressable Heat Detector
Part Code: MAGPRO-HD1
Stock Code: 2025-4813
Features
- Can work as a fixed temperature or rate of rise detector
- Class A1R, A2S, BS selectable from the control panel
- Day/night mode
- Protected area up to 35m²
- Low profile design
- LED indication with 360° visibility
- Certified to EN54–5
- Base available to purchase separately see MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- ESP
- Colour
- White
- Current Consumption Range
- 6.5 - 7.5mA
- Depth
- 42mm
- Diameter
- 103mm
- Dimensions
- (Dia)103 mm x (D)42 mm
- Guarantee
- 3 Years
- IP Rating
- IP30
- Operating Voltage Range
- 15-30V
- Packaging Types
- Each
- Product Range
- MAGFIRE
- Standards
- EN54–5
- Unspsc V18
- 46191502
- Unspsc V24
- 46191502
- Weight
- 0.12000kg
