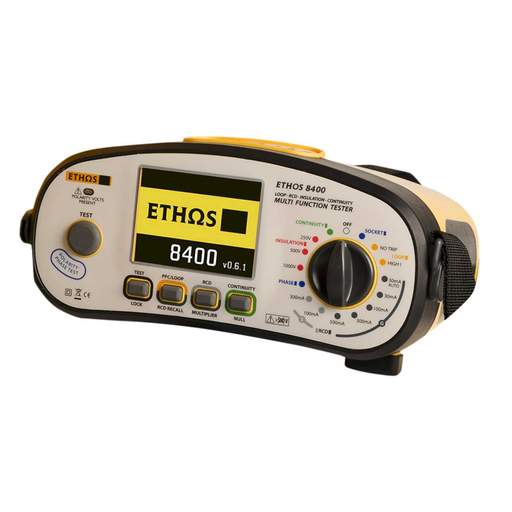

Ethos 8400 Multifunction Installation Tester
Part Code: ETHOS 8400
Stock Code: 2028-7258
Ethos 8400 Multifunction Installation Tester
Part Code: ETHOS 8400
Stock Code: 2028-7258
Delivery
2 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Simple to operate - just select and test
- Continuity testing from 0.01 - 19.99kΩ with zero function
- Insulation resistance testing for 250V, 500V and 1000V up to 200MΩ, 500MΩ , 1000MΩ respectively
- High accuracy no-trip loop testing
- High current and no-trip loop testing from 0.01Ω to 500Ω
- PFC / PSC test
- x ½, x 1 and x 5 tests @ 0° and 180° auto and ramp RCD tests
- RCD test currents of 30mA, 100mA, 300mA and 500mA
- Phase and rotation
- Battery saving auto-sleep mode with fast push button restart
- Live safety warning indicator providing overall protection
- 3rd amendment compliant
- 18th edition compliant
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Ethos
- 3 Phase Rotation
- Yes
- Ac Voltage Measurement
- 440V AC
- Batteries Included
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- AA
- Battery Type
- Alkaline
- Continuity Check
- Yes
- Continuity Range
- 0.01 Ω - 19.99 kΩ
- Depth
- 140mm
- Dimensions
- (H)115 mm x (W)245 mm x (D)140 mm
- Display Type
- LCD
- Guarantee
- 3 Years
- Height
- 115mm
- IP Rating
- IP54
- Insulation Resistance Measuring Range
- 250V 0.001 MΩ - 200.0 MΩ / 500V 0.001 MΩ - 500.0 MΩ / 1000V 0.001 MΩ - 1000 MΩ
- Insulation Test Voltage
- 250V / 500V / 1000V
- Kit Contents
- 1 x 3 Wire Lead Set with Prods and Clips, 1 x Switched Probe, 1 x Mains Plug Test Lead, 1 x AC Battery Charger, 1 x Neck Strap, 1 x Calibration Certificate and 1 x Large Soft Pouch
- Loop Impedance Range
- Hi Current 0.000 Ω - 500.0 Ω / No Trip 0.00 Ω - 500.0 Ω
- Number of Batteries
- 6
- Packaging Types
- Each
- Product Range
- Multifunction Testers
- Rcd Settings
- ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
- Rcd Test Range
- 30 mA / 100 mA / 300 mA / 500 mA
- Safety Range
- CAT III 600V, CAT IV 300V
- Standards
- IEC 61010, IEC 61557, EMC IEC 61326
- Supplied With
- 1 x 3 Wire Lead Set with Probes and Croc Clips 1 x Switched Probe 1 x Mains Plug Test Lead 1 x Calibration Certificate 6 x AA Batteries 1 x Heavy-Duty Carry Case
- Type
- Multifunction Installation Tester
- Unspsc V18
- 41113681
- Unspsc V24
- 41113681
- Weight
- 1.5kg
- Width
- 245mm
