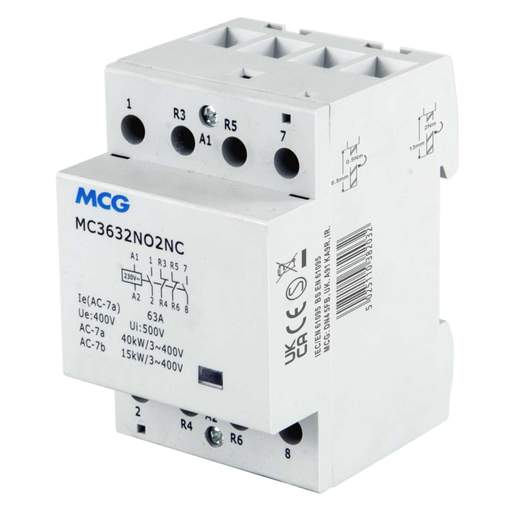

MCG 63A 4P 3 Mod 2 NO 2NC Modular Contactor
Part Code: MC3632NO2NC
Stock Code: 2029-0516
MCG 63A 4P 3 Mod 2 NO 2NC Modular Contactor
Part Code: MC3632NO2NC
Stock Code: 2029-0516
Delivery
14 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Suitable for application in general control, heating and lighting applications
- Available in 20A, 25A, 40A, 63A ratings up to 4 pole contacts
- Din rail mounted
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Coil Voltage
- 230V AC
- Colour
- Light Grey
- Compliance
- UKCA, CE
- Contact Configuration
- 2 NO + 2 NC
- Current Rating
- 63A
- Depth
- 66mm
- Dimensions
- (H)83 mm x (W)54 mm x (D)66 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 83mm
- Mounting
- Din Rail - 35mm Mounting Support
- Number of Modules
- 3
- Number of Poles
- 4 Pole
- Operating Temperature Range
- -5 - +60°C
- Packaging Types
- Each
- Standards
- IEC61095 / IEC60947-4-1
- Unspsc V18
- 39121529
- Weight
- 0.378kg
- Width
- 54mm
