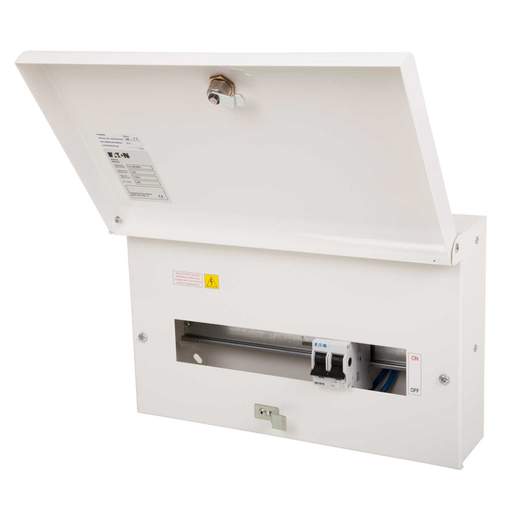

Eaton 12 Way 100A Isolator Incomer Metal Clad Consumer Unit
Part Code: EAS12S
Stock Code: 2054-9818
Eaton 12 Way 100A Isolator Incomer Metal Clad Consumer Unit
Part Code: EAS12S
Stock Code: 2054-9818
Delivery
8 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Sturdy steel enclosure with ample cable entry knockouts to accommodate cable entry from top, bottom or rear face of the enclosure
- Multiple large apertures in rear face of enclosure to allow flexible cable entry from the rear
- Snap - able busbars enabling easy on-site configuration
- Polyester powder coat paint finish
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Eaton Electric
- Current Rating
- 100A
- Depth
- 113mm
- Dimensions
- (H)223 mm x (W)359 mm x (D)113 mm
- Guarantee
- 1 Year
- Height
- 223mm
- IP Rating
- IP4X
- Incoming Device
- 100A DP Isolator
- Material
- Metal
- Mounting
- Surface
- Number of Outgoing Ways
- 12
- Packaging Types
- Each
- Previously Known As
- 179410
- Standards
- EN 61439
- Surge Protection Fitted
- No
- Surge Protection Ready
- No
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 0.009kg
- Width
- 359mm
