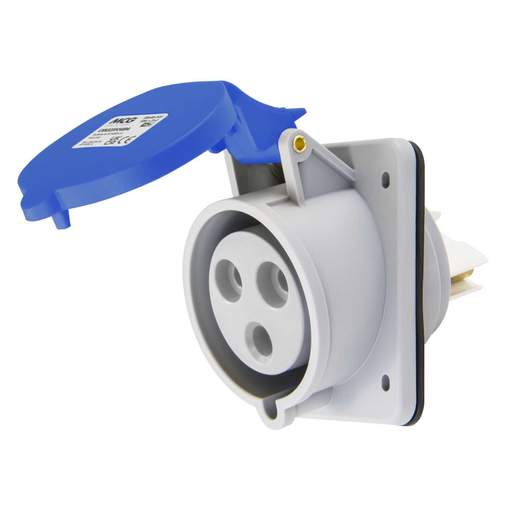

MCG 32A 2P+E 230V Angled Panel Mounted Socket IP44
Part Code: CXN323P240PA
Stock Code: 2070-9190
MCG 32A 2P+E 230V Angled Panel Mounted Socket IP44
Part Code: CXN323P240PA
Stock Code: 2070-9190
Features
- Manufactured from thermoplastic - suitable for general use
- Conforms to IEC/EN 60309-1/2
- Fast and simple assembly and wiring, cuts time and costs
- Corrosion and impact resistant
- Colour coded for fast identification of operating voltage
- Safe and reliable
- Typical operating temperature -25°C to 50°C
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Blue
- Compliance
- UKCA, CE
- Current Rating
- 32A
- Depth
- 54.5mm
- Dimensions
- (H)93.5 mm x (W)75.5 mm x (D)54.5 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 93.5mm
- IP Rating
- IP44
- Material
- Thermoplastic
- Mounting
- Panel
- Number of Poles
- 2P E
- Packaging Types
- Each
- Standards
- IEC/EN 60309-1/2
- Supplied With
- Gasket
- Type
- Angled
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 240V
- Weight
- 0.17000kg
- Width
- 75.5mm
