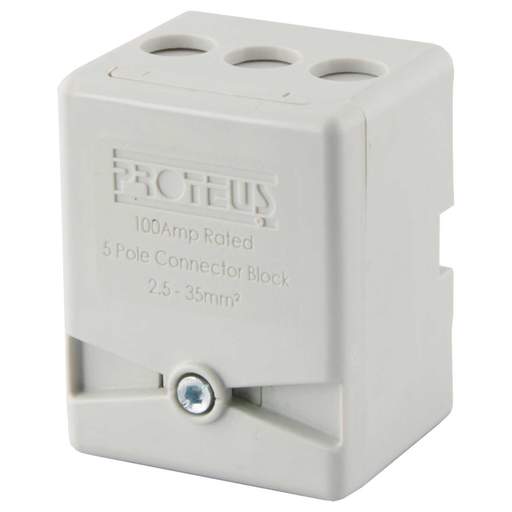

Proteus 100A 5 Way Single Pole Terminal Block Grey
Part Code: ETB5
Stock Code: 2072-4916
Proteus 100A 5 Way Single Pole Terminal Block Grey
Part Code: ETB5
Stock Code: 2072-4916
Features
- 5 Way 100A rated connector block
- Suitable for 2.5 mm² to 35 mm² cables
- Supplied with blanking pieces
- Only 1x blanking piece with per punched hole
- Lockable using wire seal
- Operating temperature from -25°C to +55°C
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Size
- 35mm²
- Colour
- Grey
- Current Rating
- 100A
- Depth
- 40mm
- Dimensions
- (H)64 mm x (W)50 mm x (D)40 mm
- Guarantee
- 1 Year
- Height
- 64mm
- Material
- Polybutylene Terephthalate (PBT)
- Maximum Operating Temperature
- 55°C
- Minimum Operating Temperature
- -25°C
- Number of Poles
- Single Pole
- Packaging Types
- Each
- Unspsc V18
- 39121410
- Unspsc V24
- 39121410
- Voltage Rating
- 230V
- Weight
- 0.19800kg
- Width
- 50mm
