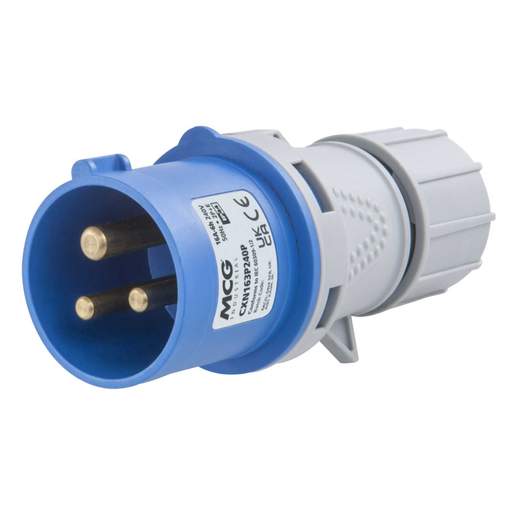

MCG 16A 2P+E 230V Plug IP44
Part Code: CXN163P240P
Stock Code: 2073-6742
MCG 16A 2P+E 230V Plug IP44
Part Code: CXN163P240P
Stock Code: 2073-6742
Features
- Manufactured from thermoplastic - suitable for general use
- Conforms to IEC/EN 60309-1/2
- Quick release feature
- Fast and simple assembly and wiring, cuts time and costs
- Ergonomic grip
- Corrosion and impact resistant
- Colour coded for fast identification of operating voltage
- Safe and reliable
- Typical operating temperature -25°C to +50°C
- Screwless cable grip
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Gland
- Colour
- Blue
- Compliance
- UKCA, CE
- Current Rating
- 16A
- Diameter
- 51mm
- Dimensions
- (L)124 mm x (Dia)51 mm x (H)58 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 58mm
- IP Rating
- IP44
- Length
- 124mm
- Material
- Thermoplastic
- Mounting
- Trailing
- Number of Poles
- 2P+E
- Packaging Types
- Each
- Standards
- IEC/EN 60309-1/2
- Unspsc V18
- 39121402
- Unspsc V24
- 39121402
- Voltage Rating
- 230V
- Weight
- 0.11100kg
