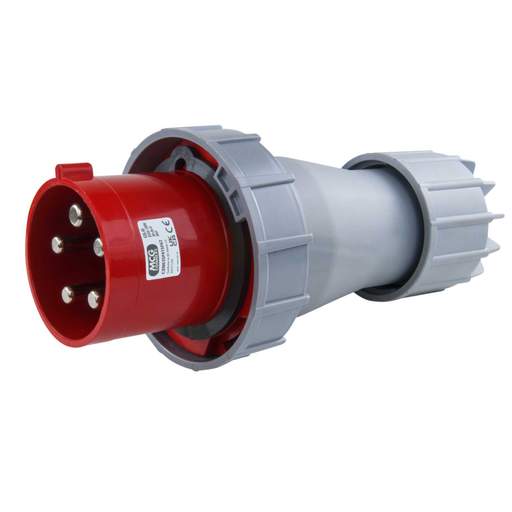

MCG 63A 3P+N+E 415V Plug IP67
Part Code: CXN635P415P67
Stock Code: 2073-6895
MCG 63A 3P+N+E 415V Plug IP67
Part Code: CXN635P415P67
Stock Code: 2073-6895
Features
- Manufactured from thermoplastic - suitable for general use
- Conforms to IEC/EN 60309-1/2
- Quick release feature
- Fast and simple assembly and wiring, cuts time and costs
- Ergonomic grip
- Corrosion and impact resistant
- Colour coded for fast identification of operating voltage
- Safe and reliable
- Typical operating temperature -25°C to 50°C
- Screwless cable grip
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Gland
- Colour
- Red
- Compliance
- UKCA, CE
- Current Rating
- 63A
- Diameter
- 113.5mm
- Dimensions
- (L)260 mm x (Dia)113.5 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- IP Rating
- IP67
- Length
- 260mm
- Material
- Thermoplastic
- Mounting
- Trailing
- Number of Poles
- 3P N E
- Packaging Types
- Box
- Standards
- IEC/EN 60309-1/2
- Unspsc V18
- 39121402
- Unspsc V24
- 39121402
- Voltage Rating
- 415V
- Weight
- 0.72500kg
